Fuses & Circuit Breakers: Notes

The fuse panel is located under the left side of the dash board by the driver's knee.

NOTE: On all models, fuse specifications are listed on inside of panel cover.

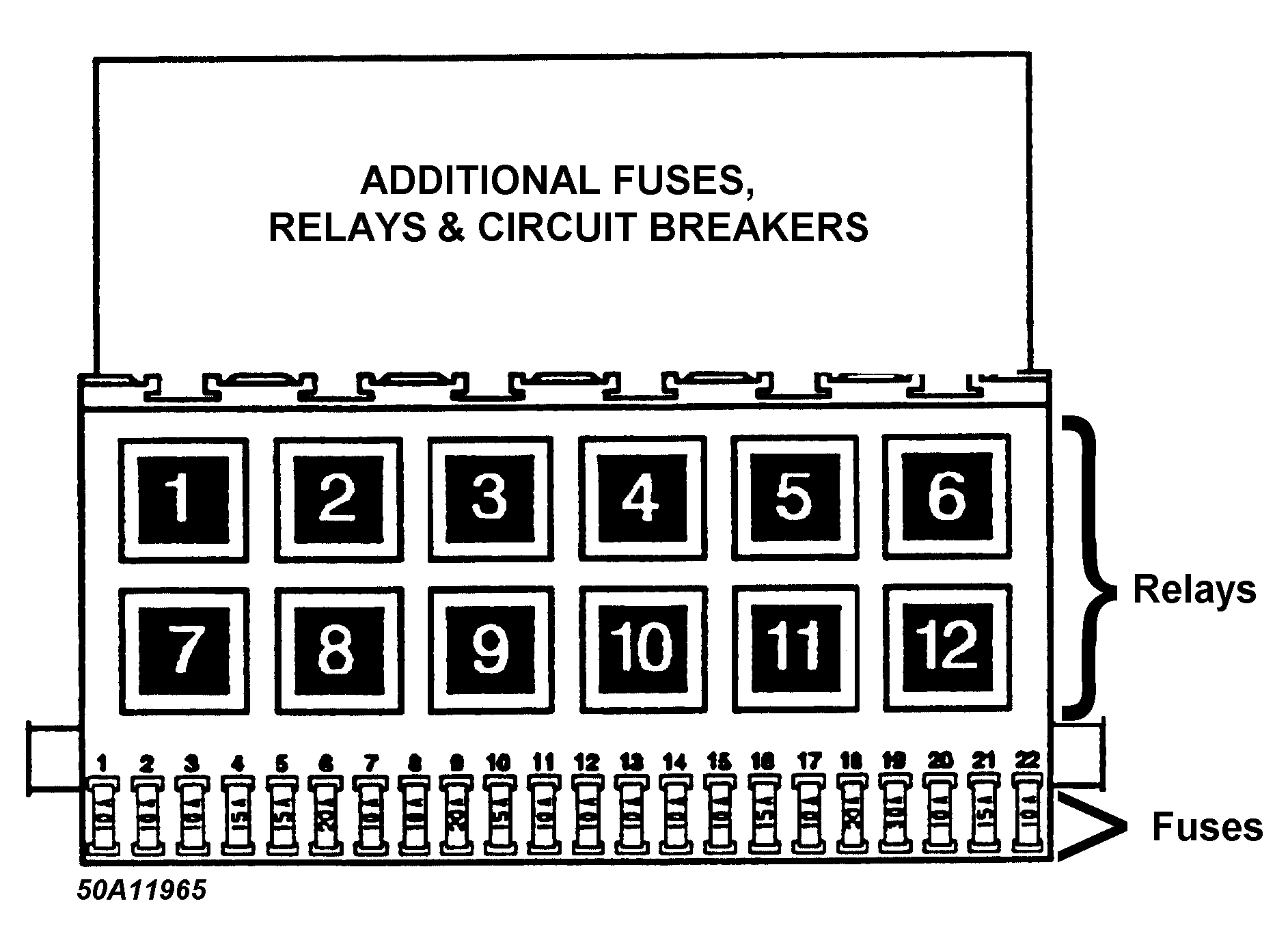

Fig 1: Fuse Panel Identification

Courtesy of VOLKSWAGEN UNITED STATES, INC.

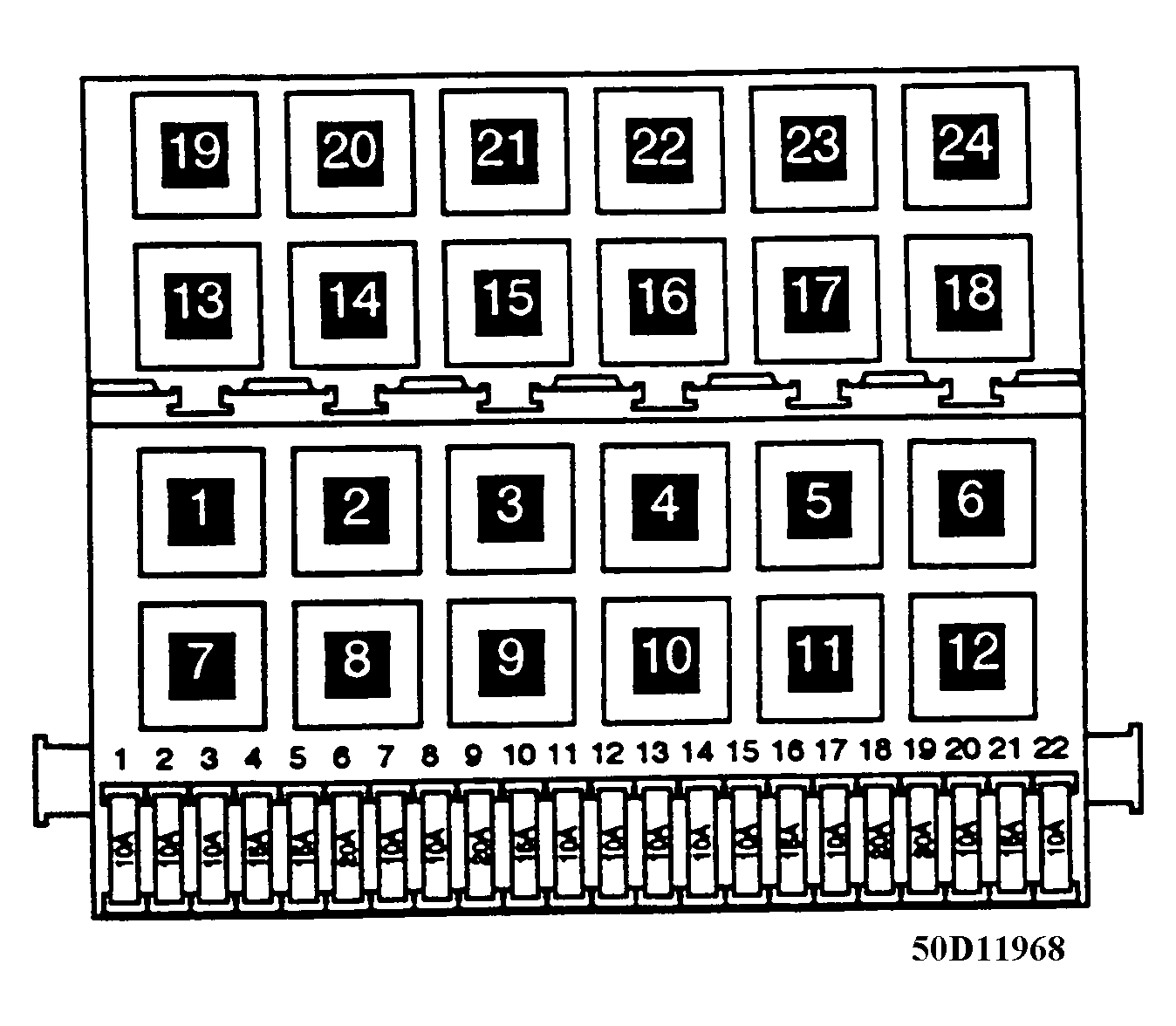

Fig 2: Fuse Panel Identification - Passat

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fig 3: Relay Panel Identification - Passat

Courtesy of VOLKSWAGEN UNITED STATES, INC.
