Front Brakes

The PR number on the vehicle data label describes which brake system is installed in the vehicle.

There is a vehicle data label in the spare wheel well and also one in the customer Maintenance booklet.

-- For information regarding each brake installed. Refer to ELSA/Vehicle Individual.

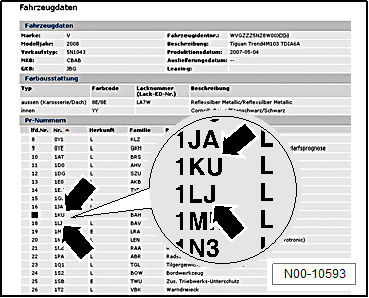

Fig 1: Identifying Rear Wheel Brake Number

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

In this example, the vehicle has "1KU" rear brakes.

• Allocation. Refer to the Parts Information.
• The following tables explain the PR numbers. These instructions are important for the brake caliper/brake rotor and brake pad combination.
