Front Brakes

Front Brakes PC 57 (15):

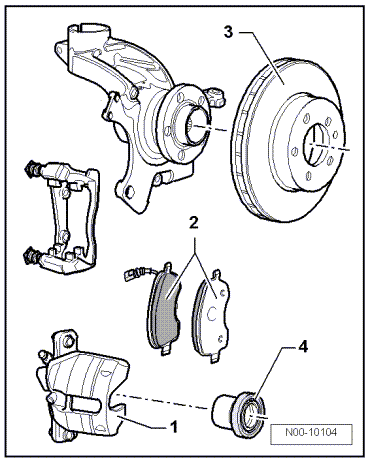

Fig 1: Exploded View Of Front Brakes

GWWN00-10104

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1ZE / 1ZP
1	Brake caliper		PC 57 (15)
2	Brake pad	Thickness	14 mm
2	Brake pad	Wear limit without back plate	2 mm
3	Brake rotor	Diameter	288 mm
	Brake rotor	Thickness	25 mm
	Brake rotor	Wear limit	22 mm
4	Brake caliper	Piston diameter	57 mm

Front Brakes PC 57 (16):

Fig 2: Exploded View Of Front Brakes

GWWN00-10104

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1ZA / 1ZD / 1ZB
1	Brake caliper		PC 57 (16)
2	Brake pad	Thickness	14 mm
2	Brake pad	Wear limit without back plate	2 mm
3	Brake rotor	Diameter	312 mm
	Brake rotor	Thickness	25 mm
	Brake rotor	Wear limit	22 mm
4	Brake caliper	Piston diameter	57 mm

Front Brakes C60 (17):

Fig 3: Exploded View Of Front Brakes

GWWN00-10104

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1LJ / 1LM
1	Brake caliper		C60 (17)
2	Brake pad	Thickness	13 mm
2	Brake pad	Wear limit without back plate	2 mm
3	Brake rotor	Diameter	340 mm
	Brake rotor	Thickness	30 mm
	Brake rotor	Wear limit	27 mm
4	Brake caliper	Piston diameter	60 mm
