Guide Rail, Locking

NOTE:

If the locking piece on the guide rail becomes detached while cleaning or lubricating, do not operate the Panorama sliding sunroof. Risk of causing damage.

Locking the rail:

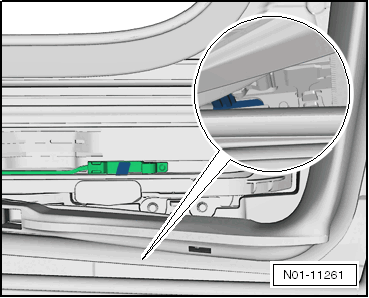

Fig 1: Identifying Lever And Locking Piece
GWWN01-11261Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully press the guide rail lever -green- downward.

-- Using a screwdriver, carefully push the locking piece -blue- on the side over the lever -green-.
