Windshield Wiper Protectors, Removing: Notes

NOTE:

There are three versions of windshield wiper protectors:

1. Version with wiper blade with a protective strip and two fasteners

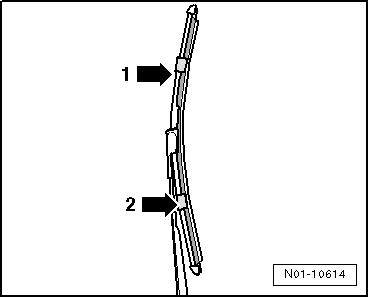

Fig 1: Locating Fasteners -1- & -2- On Protective Rails

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

2. Version with wiper blade with protective strip to slide on

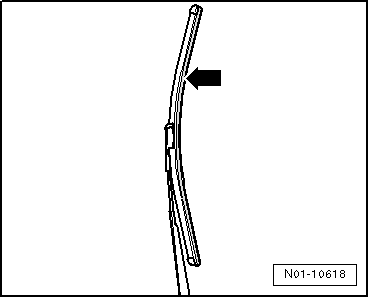

Fig 2: Identifying Protective Rail Pushed Onto Wiper Blade

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

3. Transport wiper blade version

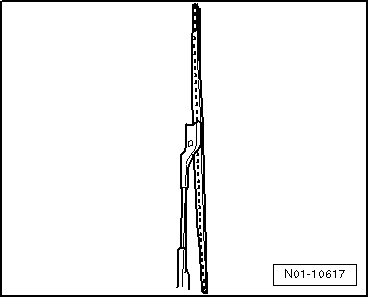

Fig 3: Identifying Transport Wiper Blade (No Wind Deflector)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Characteristics: does not have a wind deflector and must be exchanged for the standard wiper blade.

Windshield Wiper Protectors, Replacing Version 3 "Transport Wiper Blade". Refer to WINDSHIELD WIPER PROTECTORS, REPLACING VERSION 3 "Transport Wiper Blade" .
