Selector Lever Handle, Removing And Installing: Installing

Install in reverse order of removal. Note the following:

• The selector lever is in the "N" position.

NOTE:

There is the possibility that the button can be pressed into the handle. Never install the handle when the button is pressed in.

Fig 1: Identifying Caution For Button

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Move the button in the installation position. Refer to BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .

A new handle is delivered with an assembly fastener. Pull out the safety catch in direction of -arrow- just before installing the new handle.

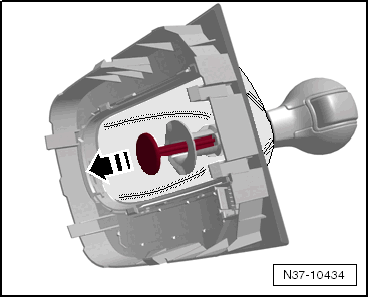

Fig 2: Identifying Direction To Pull Out Assembly Aid Just Prior To Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the handle with a new clamp -arrow-. Do not clamp the clamps yet.

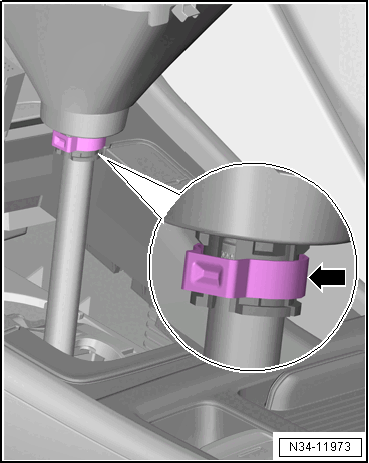

Fig 3: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the button after installing it.

-- If the button after being pressed returns to its starting position, the clamp can be clamped off using the Hose Clamp Pliers: V.A.G 1275A  .

-- Connect the connector -1-.

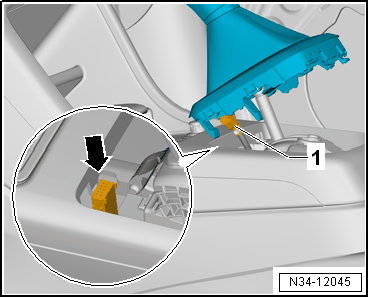

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Place the connector as shown in the front area of the center console -arrow-.

• The connector must not come into contact with the selector mechanism.
• Clip in the cover in the rear area first.
