Servicing The Cable Bracket

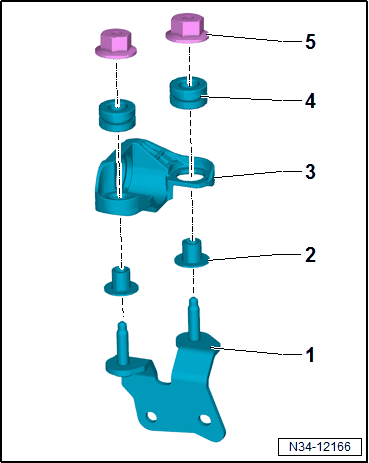

GWWN34-12166Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Lower Cable Bracket
  2. Bushing
  3. Upper Cable Bracket
  4. Grommet
  5. Nut with Collar
    • 20 Nm
