All Wheel Drive Clutch, Changing Oil: Notes

NOTE:

On vehicles equipped with a all wheel drive clutch and final drive, the drain and sealing screws of both systems get interchanged due to the integrated housing. This results in avoidable mistakes in maintenance and servicing, which can result in the all wheel drive clutch or the axle drive failing.

The all wheel drive clutch and axle drive are a single unit with separate oil housings.

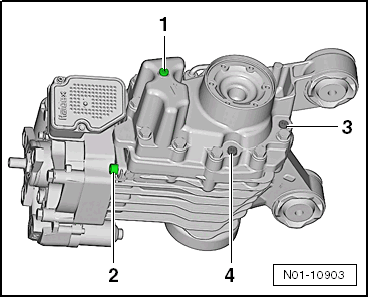

Fig 1: Identifying Drain Plug -1-, Filler Plug -2-, Axle Oil Filler Plug -3- And Axle Oil Drain Plug -4-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-1- Oil filler hole plug for the all wheel drive clutch oils

-2- Drain plug for the all wheel drive clutch oil

-3- Gear oil filler hole plug

-4- Gear oil drain plug

Special Tools And Workshop Equipment Required

• Digital Thermometer:VAS6519
  Fig 2: Identifying Digital Thermometer VAS 6519

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1331 5-50Nm:VAG1331
  Fig 3: Identifying Torque Wrench

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Used Oil Collection and Extraction Unit:SMN372500
  Fig 4: Identifying Used Oil Collection And Extraction Unit

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Charging Device For BorgWarner Coupling 2 :VAS6291 A
  Fig 5: Identifying Charging Device For Haldex Coupling 2VAS6291A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane - Drip Tray:VAS6208
  Fig 6: Identifying Drip Tray

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
