Selector Lever Cable, Removing And Installing: Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

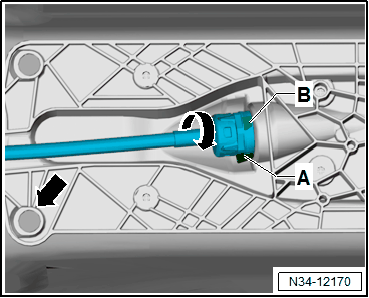

-- Insert the selector lever cable in the gearshift housing, so that the offset -A- point in the direction of the eye -arrow-.

The locking mechanism -B- is located in the gearshift housing.

-- Turn the selector lever cable with light pressure in the direction of -arrow- until the offset -A- contacts the locking mechanism -B-.

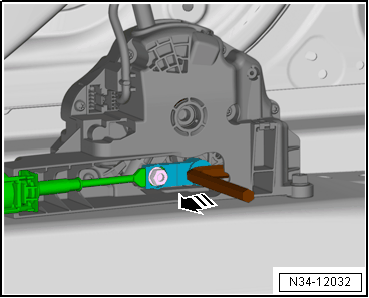

-- Press the selector lever cable on the selector mechanism ball head (in this image on a different selector mechanism).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The selector lever cable can for example be pressed with a hex socket wrench 8 mm in the direction of -arrow-.

-- Install the selector lever cable at the same time with the selector mechanism. Refer to SELECTOR MECHANISM WITH SELECTOR LEVER CABLE, REMOVING AND INSTALLING .

-- Adjust the selector lever cable. Refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .

-- Install the center console. Refer to Overview - Center Console .

-- Install the selector lever handle. Refer to SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .

-- Check the selector mechanism. Refer to GEARSHIFT MECHANISM, CHECKING .
