ATF Cooler, Removing And Installing: Installing

Install in reverse order of removal while noting the following:

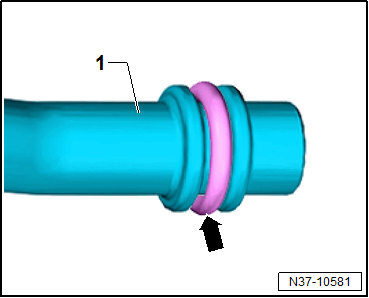

-- Always replace the O-rings -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

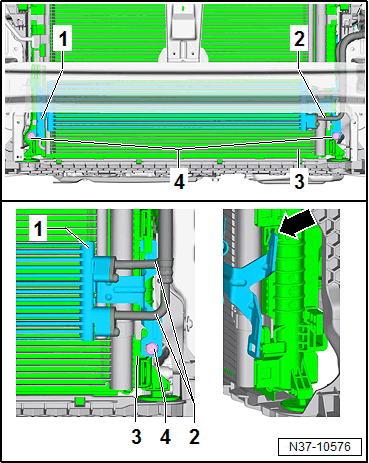

-- When installing the right and left bracket of the ATF cooler -1- push all the way in the tabs -arrow- on the radiator -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install and tighten the bolts -4-.

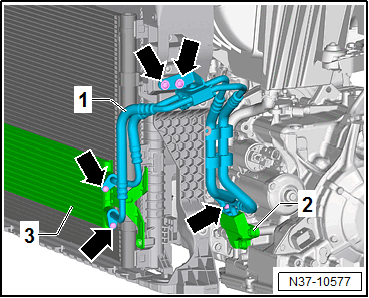

-- Install the ATF line -1- on the radiator -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the radiator shutter. Refer to RADIATOR SHUTTER, REMOVING AND INSTALLING 2.0L or RADIATOR SHUTTER, REMOVING AND INSTALLING 3.6L .

-- Install the front bumper. Refer to OVERVIEW - LOCK CARRIER .

-- Bleed the ATF circuit. Refer to ATF CIRCUIT, BLEEDING .
