Overview - ATF Circuit

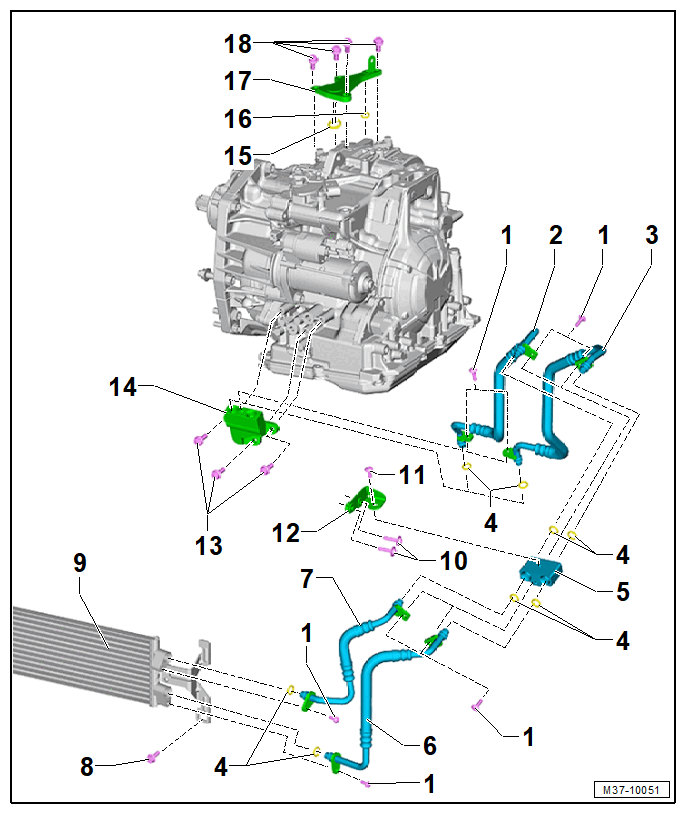

Fig 1: Exploded View Of ATF Circuit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 8 Nm
- M6 x 22
ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
ATF Line
- From the thermostat to the adapter
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
O-Rings
- Replace after removing
Adapter
ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
ATF Line
- From the adapter to the ATF cooler
- Removing and Installing. Refer to ATF LINES, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
- Quantity 2, M6 x 17
ATF Cooler
- Removing and Installing. Refer to ATF COOLER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity 2, M6 x 30
Bolt
- 8 Nm
- M6 x 22
Bracket
Bolt
- 20 Nm
- Quantity: 3, M8 x 25
Thermostat
- Removing and Installing. Refer to THERMOSTAT, REMOVING AND INSTALLING .
- Replace the O-rings after disassembly
O-Ring
- Can only be replaced together with the ATF cooler adapter
O-Ring
- Can only be replaced together with the ATF cooler adapter
ATF Cooler Adapter
- When replacing the transmission a new adapter with new seals must be installed
- Removing and Installing. Refer to ATF COOLER ADAPTER, REMOVING AND INSTALLING .
Bolt
- 20 Nm
- Quantity: 4, M8 x 25
