ATF Level, Checking: Checking

-- Connect the Vehicle Diagnostic Tester and identify the vehicle in Guided Functions .

-- Select check ATF level .

NOTE:

Let the transmission cool down if the fluid temperature is higher than 45 °C (113 °F).

The engine is idling and the selector lever is in "P".

-- Move the Drip Tray For Workshop Cranes or Used Oil Collection and Extraction Unit: SMN372500 under the transmission near the ATF check plug.

-- Remove the ATF check plug -arrow-.

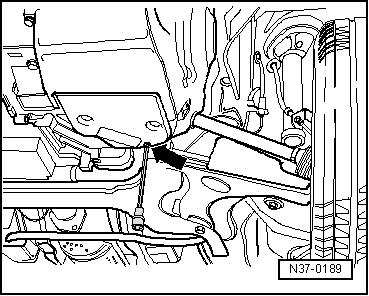

Fig 1: ATF Level Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Always replace the gasket -arrow- for the bolt.

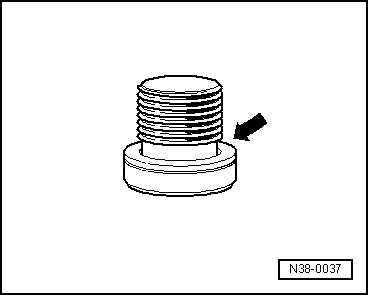

Fig 2: ATF Inspection Plug

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Even if the level of transmission fluid is too low, first a small amount of transmission fluid will flow out of the overflow tube, because it fills during operation.

ATF flows out of the overflow pipe.

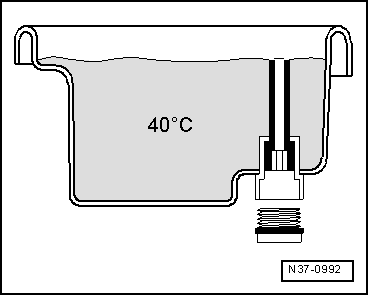

Fig 3: Example Of Filler Tube As It Is Installed In Transmissions

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Let the excess fluid drain.

-- Install the drain plug with a new gasket as soon as all the fluid has drained out (it starts to drip).

-- If no transmission fluid comes out, then fill.

CAUTION:

Too little or too much fluid will impair the function of the transmission.
