Securing On Engine And Transmission Holder

Special tools and workshop equipment required

Shop Crane : VAS6100

Fig 1: Identifying Shop Crane
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Holding Plate: VW309A
or Holding Plate: VW309

Fig 2: Holding Plate VW 309
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Transmission Support: VW353

Fig 3: Identifying Transmission Support
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Bracket: VAS6095A

Fig 4: Identifying Engine and Gearbox Bracket VAS6095A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Remember there is fluid in the transmission. Do not turn the transmission with the vents facing downward when transporting or when it is on the assembly stand. The fluid will leak out.

NOTE:

Remove the bleed cap if necessary and seal using suitable oil-tight plugs.

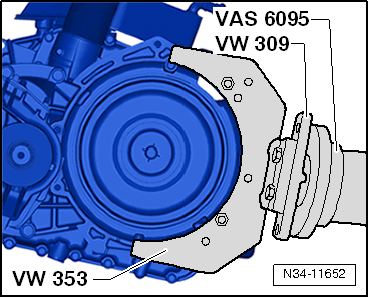

Transmission, Securing to Engine/Transmission Holder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Example Image:

-- Mount the transmission to the Transmission Support: VW353 and place it, with the Holding Plate: VW309A in the Engine and Gearbox Bracket VAS6095A: VAS6095 .
