Selector Lever Handle, Removing And Installing: Removing

-- Move the selector lever into "D" position.

It is not necessary to pull out the button -arrow- manually. The button locks in the installation position by itself when the handle is removed.

Fig 1: Handle With Button In Front

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

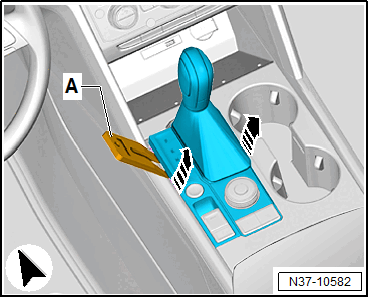

-- Insert the Wedge Set: T10383/2  -A- at the front on the left and right sides between the center console and shift cover as shown and carefully pry out the shift cover in direction of -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.

-- Cut the clamp -arrow- under the boot with a side cutter.

Fig 2: Identifying Clamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the knob up without pressing the button.
