Transmission, Transporting

Special tools and workshop equipment required

• Engine/Gearbox Support Shackle: 10-222A/12

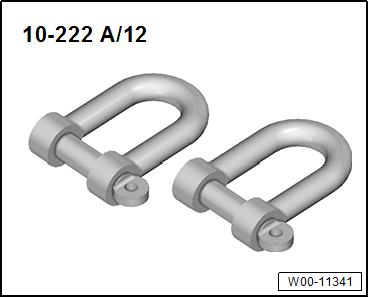

  Fig 1: Engine/Gearbox Support Shackle (10-222A/12)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Shop Crane : VAS6100
  Fig 2: Identifying Shop Crane

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Engine/Gearbox Support Shackle: 10-222A/12  can be used to transport the automatic transmission and for setting up the Transmission Support: 3282  .

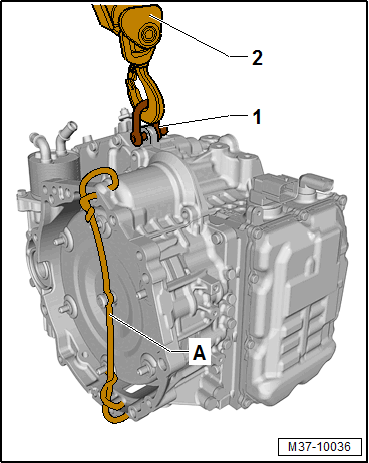

-- To prevent the torque converter from falling out during transport, secure it a wire -A-, for example.

Fig 3: Torque Converter, Securing from Falling Out

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mount the Engine/Gearbox Support Shackle: 10-222A/12  -1- at the top of the transmission housing.

-- Engage the hook of the shop crane : VAS6100  -2- into the shackles a shown.

-- Lift the transmission using the Shop Crane: VAS6100  and Engine/Gearbox Support Shackle: 10-222A/12  .
