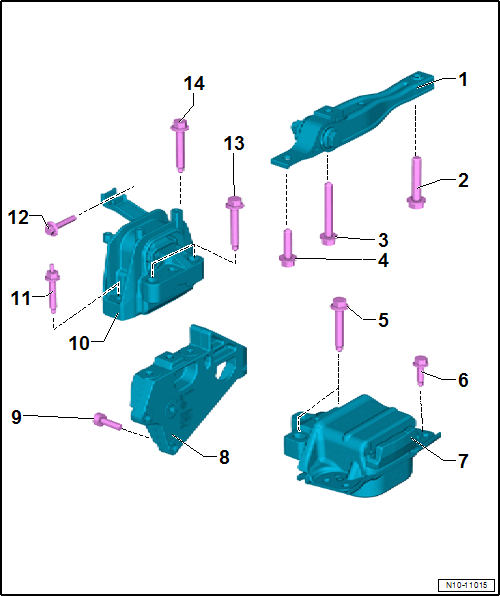

Overview - Assembly Mounts
- Pendulum Support
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- 60 Nm +90°
- Replace after removing
- Bolt
- 50 Nm +90°
- Replace after removing
- Bolt
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Replace after removing
- Transmission Mount
- With support arm
- Removing and Installing. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Engine Support
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Engine Mount
- With support arm
- Removing and Installing. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
- Bolt
- Replace after removing
- Tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
Transmission with Threaded Insert (for Example Heli Coil) for Attaching the Pendulum Support
NOTE:
There are threaded inserts (for example "Heli Coil") in the pendulum support fastening holes.

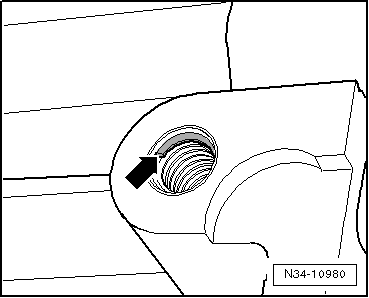

Identifying feature: there is a collar on the first thread -arrow-.
Make sure to use the appropriate bolts and observe the tightening specification. Refer to OVERVIEW - SUBFRAME MOUNT 2.0L or OVERVIEW - ASSEMBLY MOUNTS 3.6L .
