Window Guide, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the front door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

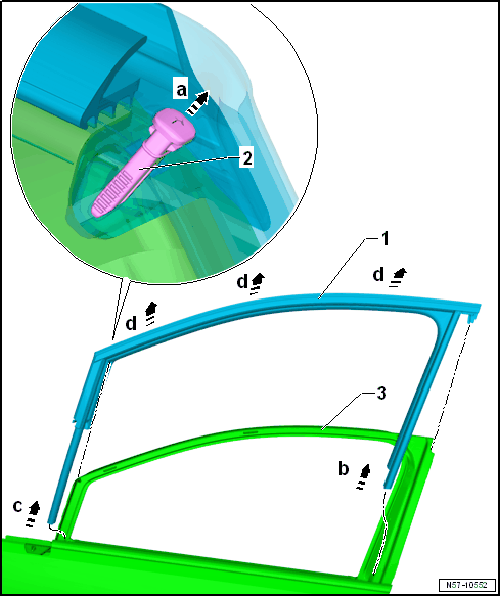

-- Remove the securing pin -2- -arrow a-.

-- Roll the sealing lip on the window guide -1- from the inside off the door flange -3-.

-- Remove the window guide -1- from the door mounts -arrow b- and -arrow c-.

-- Remove the window guide -1- from the door flange -3- evenly all around -d arrows-.
