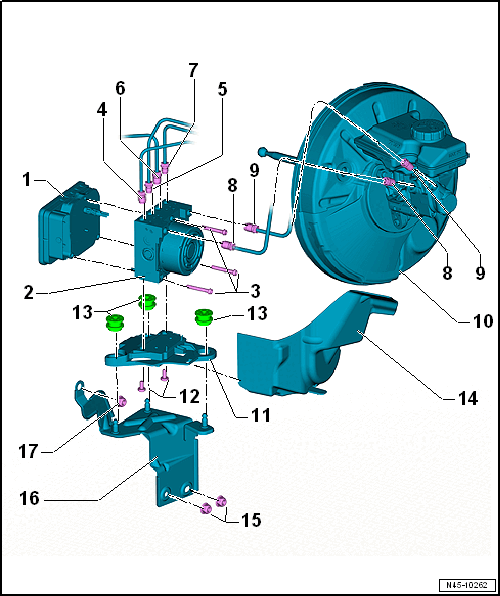

Overview - Control Module And Hydraulic Unit

• Removing and installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, GASOLINE ENGINE, REMOVING AND INSTALLING .

• Removing and installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, GASOLINE ENGINE, REMOVING AND INSTALLING .

• 1. Step: Preliminary tightening specification 1 Nm to 1.5 Nm (to install the seal)
• 2. Step: final tightening specification: 2.5 Nm
• Install the new TORX^® bolt in two steps switching back and forth.

• 14 Nm
• Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread
• To the right rear brake caliper

• 14 Nm
• Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
• To the left front brake caliper

• 14 Nm
• To the right front brake caliper
• Identification: 5.25 mm diameter and tube fitting with a M12 x 1 thread

• 14 Nm
• Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
• To the left rear brake caliper

• 14 Nm
• Identification: 6 mm diameter and tube fitting with a M12 x 1 thread
• Brake master cylinder/primary piston circuit to the ABS Hydraulic Unit -N55-

• 14 Nm
• Identification: 6 mm diameter and tube fitting with a M12 x 1 thread
• Brake master cylinder/secondary piston circuit to the ABS Hydraulic Unit -N55-

• Removing and installing

• 8 Nm

For allocation. Refer to the Parts Information

• 20 Nm

• 20 Nm
