Special Tools

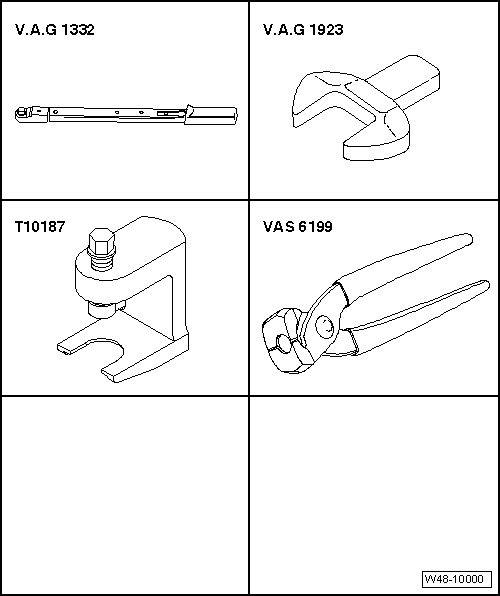

Fig 1: Identifying Special Tools -- Tie Rod, Removal And Installation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Torque Wrench 1332 40-200Nm: VAG1332
• Torque Wrench Insert - Open Jaw : VAG1923
• Puller - Ball Joint: T10187
• Locking Pliers: VAS6199

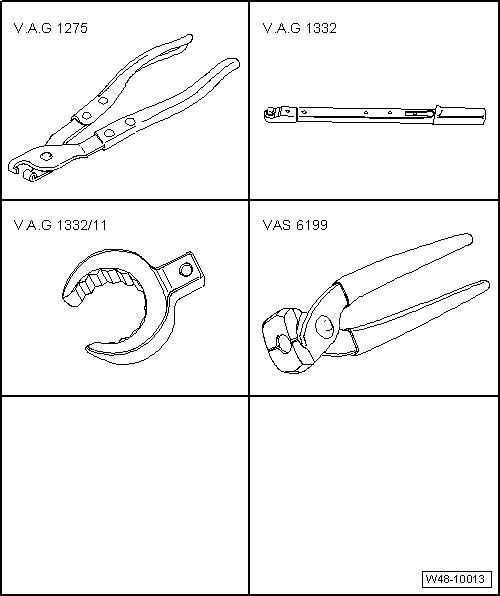

Fig 2: Identifying Hose Clamp Pliers V.A.G And Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Hose Clip Pliers: VAG1275A
• Torque Wrench 1332 40-200Nm: VAG1332
• Open Ring Wrench - 24mm: VAG1332/11
• Locking Pliers: VAS6199

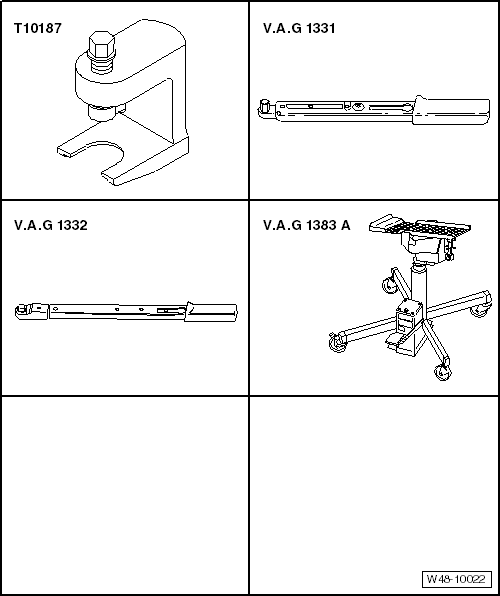

Fig 3: Identifying Special Tools Required

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Puller - Ball Joint: T10187
• Torque Wrench 1331 5-50Nm: VAG1331
• Torque Wrench 1332 40-200Nm: VAG1332
• Engine and Gearbox Jack: VAS6931

Special tools and workshop equipment required

• 7/16 Inch Extractor: T10424US

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
