Overview - Driver Information System Control Module With Display Unit

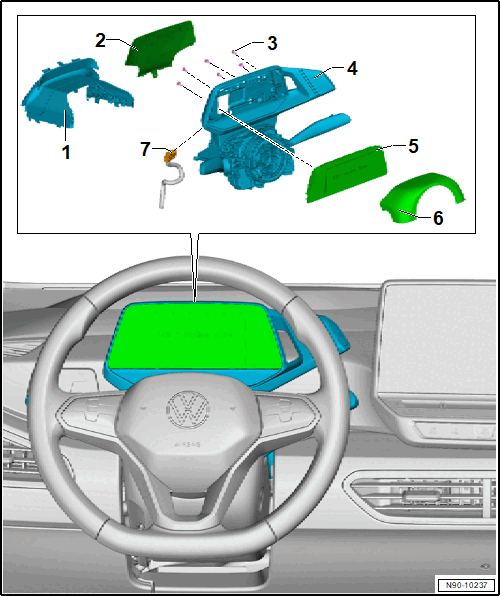

Fig 1: Exploded View Of Driver Information System Control Module With Display Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Instrument Cluster Gap Cover
   • Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
2. Trim for Driver Information System Control Module with Display Unit -J1254-
3. Bolt
   • 3 Nm
   • Quantity: 6
4. Steering Column Electronics Control Module -J527-
   • Refer to Steering Column Electronics Control Module -J527-, REMOVING AND INSTALLING .
5. Driver Information System Control Module with Display Unit -J1254-
   • Refer to Driver Information System Control Module with Display Unit -J1254-, REMOVING AND INSTALLING  .
6. Upper Steering Column Trim Panel
   • Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
7. Connector for the Driver Information System Control Module with Display Unit -J1254-
