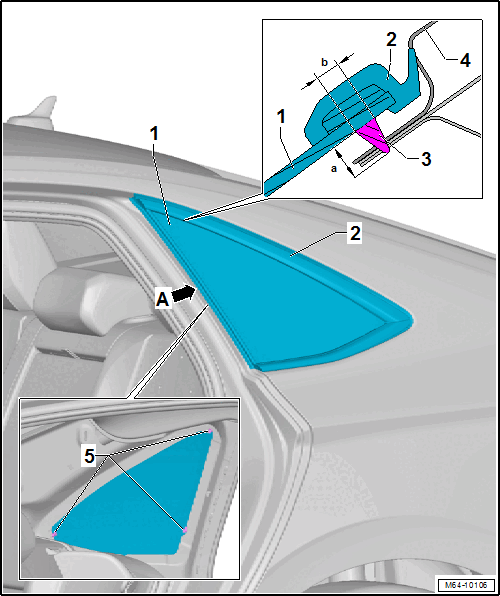

Overview - Rear Side Window
- Side Window
- Side window, removing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- Seal
- Component of rear side window
- PUR Adhesive Sealant
- Bead diameter including precoating, residual material on the window glass and window glass flange
Dimension -a- = 10 mm
Dimension -b- = 7 mm
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at -arrow a-
- Bead diameter including precoating, residual material on the window glass and window glass flange
- Body Flange
- Prepare the body flange for installation. Refer to BODY FLANGE, PREPARING FOR INSTALLATION .
- Centering Pin
- Quantity: 3
