Overview - Instrument Cluster

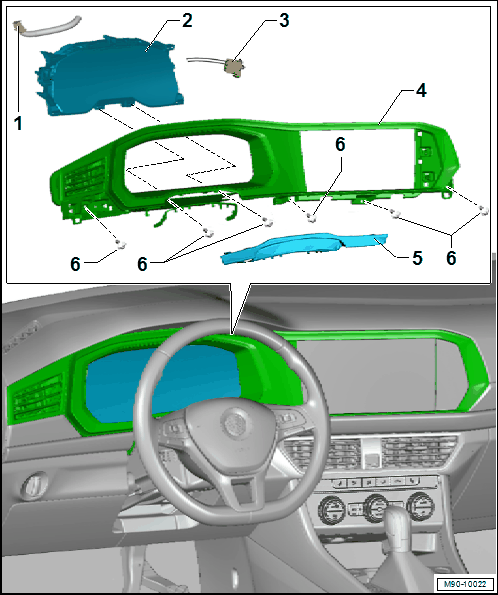

Fig 1: Exploded View Of Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Connector
- For the instrument cluster
Instrument Cluster -KX2-
- With Instrument Cluster Control Module -J285-
- Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
MOST Bus Connector
- For the fully digital instrument cluster
Instrument Cluster Trim Molding
- Removing and installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Upper Steering Column Trim Panel
- Overview. Refer to OVERVIEW - STEERING COLUMN TRIM PANEL .
Bolt
- 1.5 Nm
- Quantity: 6
