Automatic Headlamp Control And Stationary Cornering Lamp, Checking Function
NOTE:
The automatic headlamp control is also called automatic headlamps.
- Vehicle must be in daylight.
-- Switch the ignition on.

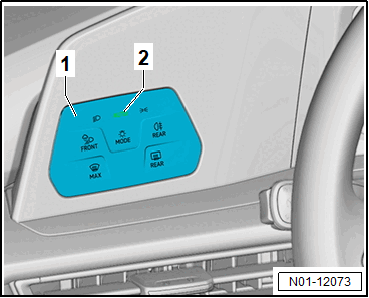

-- Put the light switch -1- in "Auto" -2- position.
The headlamp should not come on when it is bright.

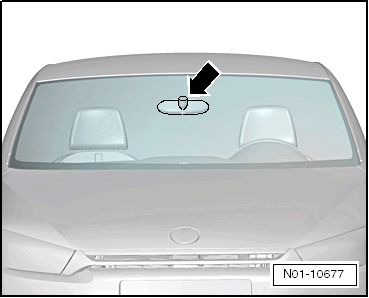

Rain/light recognition sensor is located in upper center area of front windshield -arrow-.
-- Switch the ignition on.
-- Put the light switch -1- in "Auto" -2- position.
-- Cover the rain/light recognition sensor -arrow- from the outside by hand or with a suitable object.
The decrease in light is measured and the headlamps are switched on.
Stationary Cornering Lamp
The stationary cornering lamp is integrated in the headlamp.
-- Start the engine.
-- Turn on the low beam.
-- Turn on the turn signal.
-- Check the cornering lamp.
-- Repeat on the other side.
