Tire Repair Kit, Checking

NOTE:

Depending on vehicle equipment, the vehicles are equipped with a tire mobility kit.

It contains a bottle of tire sealant, among other things.

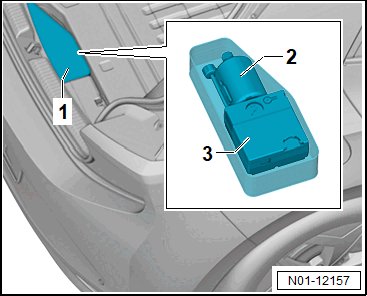

GWWN01-12157Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tire mobility kit is located in the tool bag -1- in the recess in the luggage compartment.

The tire mobility kit contains a bottle with tire sealant -2- and a compressor -3-.

The tire sealant in the bottle has a limited shelf life.

The expiration date is written on the bottle -2-.

-- Enter the expiration date in the maintenance table.

-- Replace the tire sealant after the expiration date is reached. (The tire sealant must not be older than 4 years).
