Wheel Bolts, Tightening To Specification

Special tools and workshop equipment required

Wheel Lock Set :T10313

Fig 1: Identifying Master Wheel Bolt Key Set T10313
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench

NOTE:

A special adapter is required to loosen/tighten anti-theft wheel bolts. It is included in the vehicle tool kit.

Do not use an impact wrench to loosen the anti-theft wheel bolts (lockable wheel bolts).

If the adapter to loosen/tighten the anti-theft wheel bolts is not present in the vehicle, use Master Wheel Bolt Key Set.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

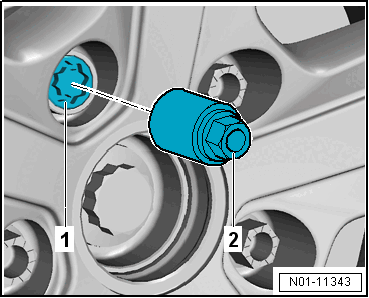

-- Slide the adapter -2- all the way into the anti-theft wheel bolt -1-.

-- Insert the wrench over the adapter -2-.

-- Tighten the wheel bolts in a diagonal sequence to the tightening specification.

Tightening Specification	Nm
Wheel Bolts	120
