Triggering Contacts

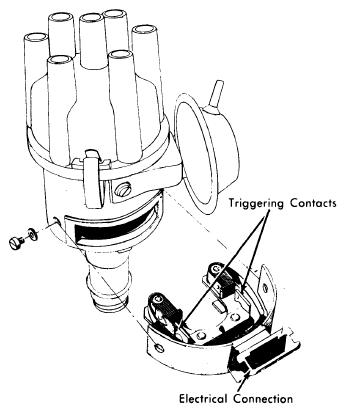

The triggering contacts, located in the ignition distributor, inform the ECU when to start injection of fuel. See Figure. The triggering contacts also signal the ECU at what speed the engine is running. These signals only tell the ECU when to start the injection of fuel, the duration of injection is determined by signals from the manifold pressure sensor.
