Wiring Diagrams: Wiring Diagram

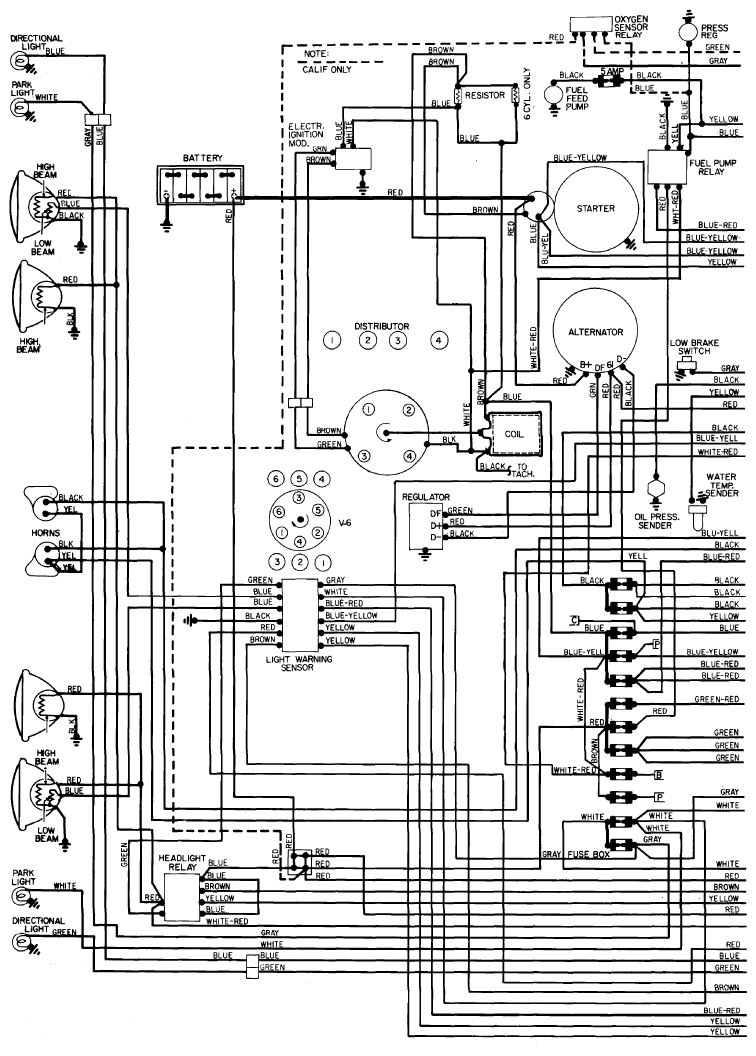

Fig 1: Wiring Diagram - 240 & 260 (1 of 2)
G09303593Courtesy of VOLVO CARS CORPORATION

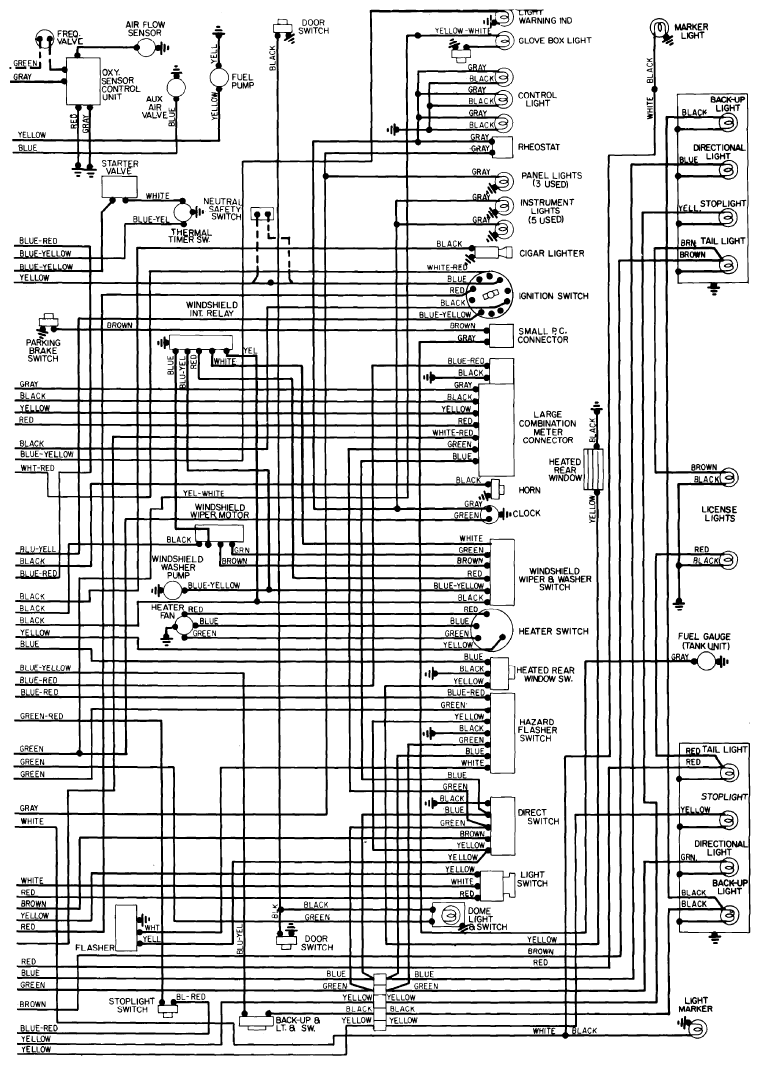

Fig 2: Wiring Diagram - 240 & 260 (2 of 2)
G09303594Courtesy of VOLVO CARS CORPORATION
