Ignition Coil

Terminal 1 on the ignition coil is connected to the electronic control unit to provide the unit with engine speed information.

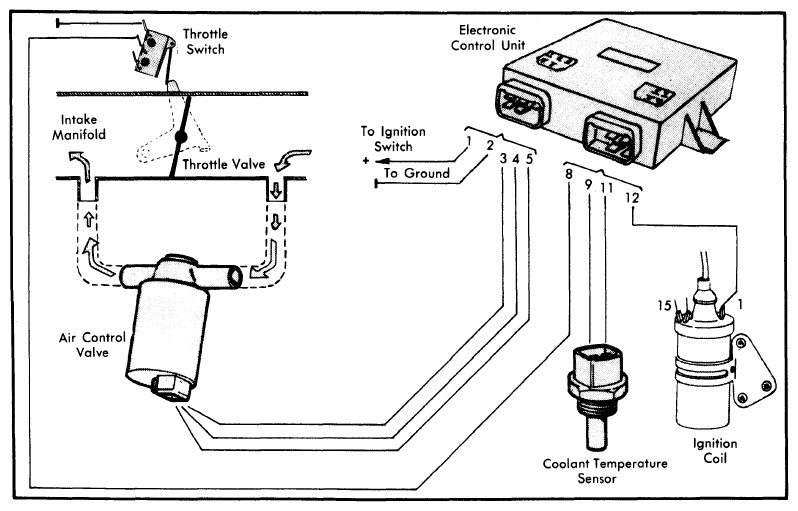

Fig 1: Volvo Electronic Idle Speed Control System

Courtesy of VOLVO CARS CORPORATION
