Sensitivity Adjustment

The control unit is adjusted for maximum sensitivity at the factory. To reduce sensitivity (improve economy), turn screw counterclockwise. This will also reduce the ability of the system to maintain speed selected in centering adjustment.

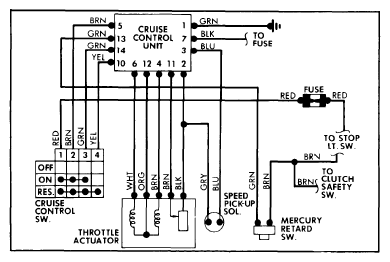

Fig 1: Volvo Cruise Control Wiring Diagram

Courtesy of VOLVO CARS CORPORATION

Also see chassis diagram in WIRING DIAGRAM Section.
