Spark Plugs

SPARK PLUG TYPE

Application	Bosch No.
All Models	HR6DS

SPARK PLUG SPECIFICATIONS

Application	Gap In. (mm)	Torque Ft. Lbs. (N.m)
All Models	.030 (.75)	9 (12)

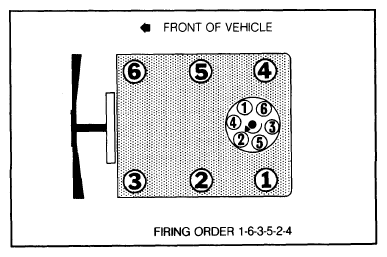

Fig 1: Firing Order and Distributor Rotation

Courtesy of VOLVO CARS CORPORATION
