Miscellaneous Components

MISCELLANEOUS COMPONENTS LOCATION

Component Location

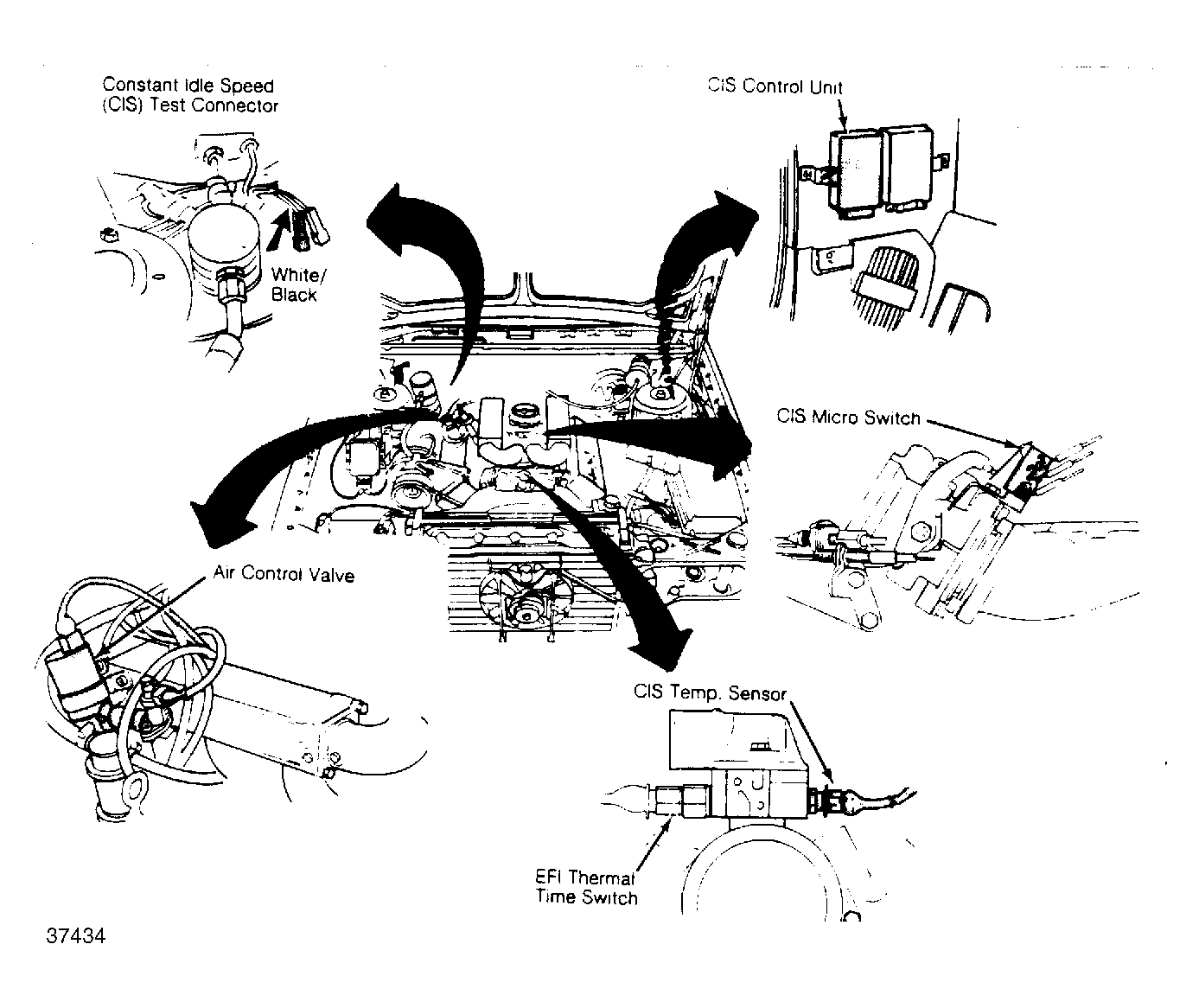

Constant Idle Speed (CIS) Test Connector White/Black connector at right rear of engine compartment. See Figure .

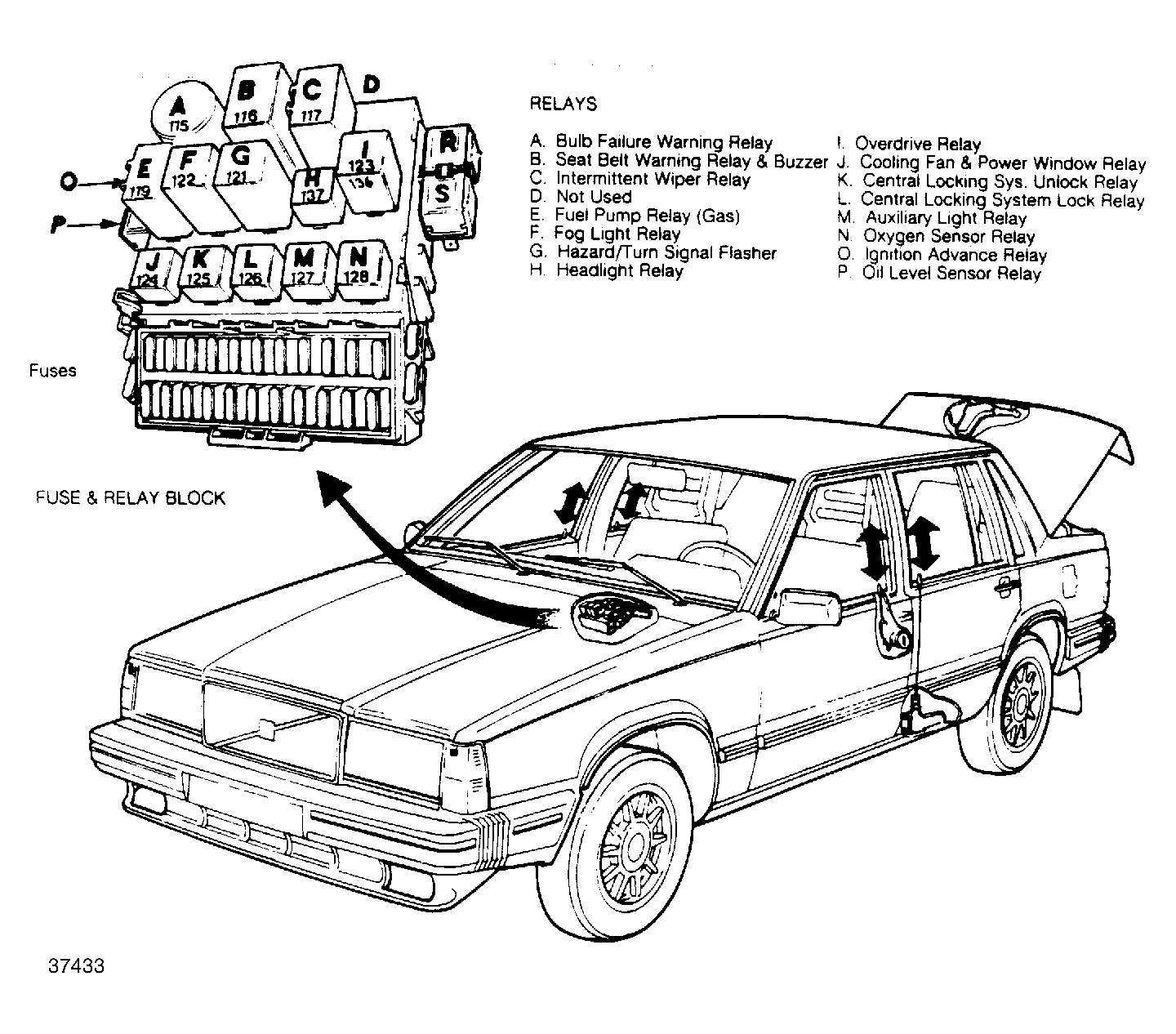

Fuse & Relay Block Under dash, in front of gearshift console. See Figure .
Glow Plug Test Connector On left rear side of engine compartment.
Hazard/Turn Signal Flasher Position G on fuse & relay block. See Figure .
Ignition Ballast Resistor On front of right shock tower.

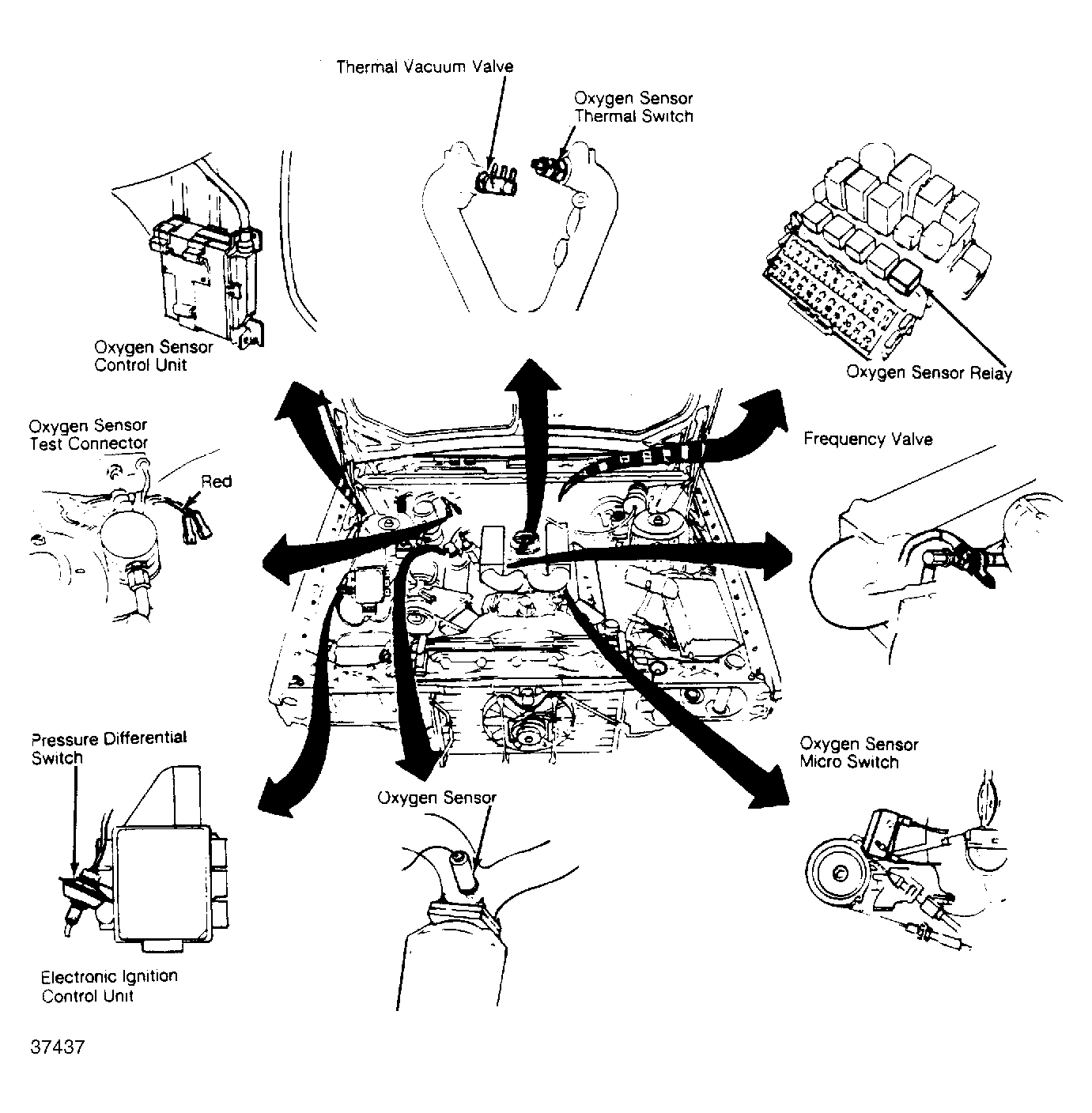

Oxygen Sensor Test Connector Red connector at right rear of engine compartment. See Figure .
Starter Motor Service Connector Pink connector at left rear corner of engine compartment.
