Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Back-Up Light Switch | On right side of transmission. |
| Brake Failure Warning Switch | In pressure differential valve, below master cylinder. |
| Brake/Stop Light Switch | On bracket above brake pedal. |

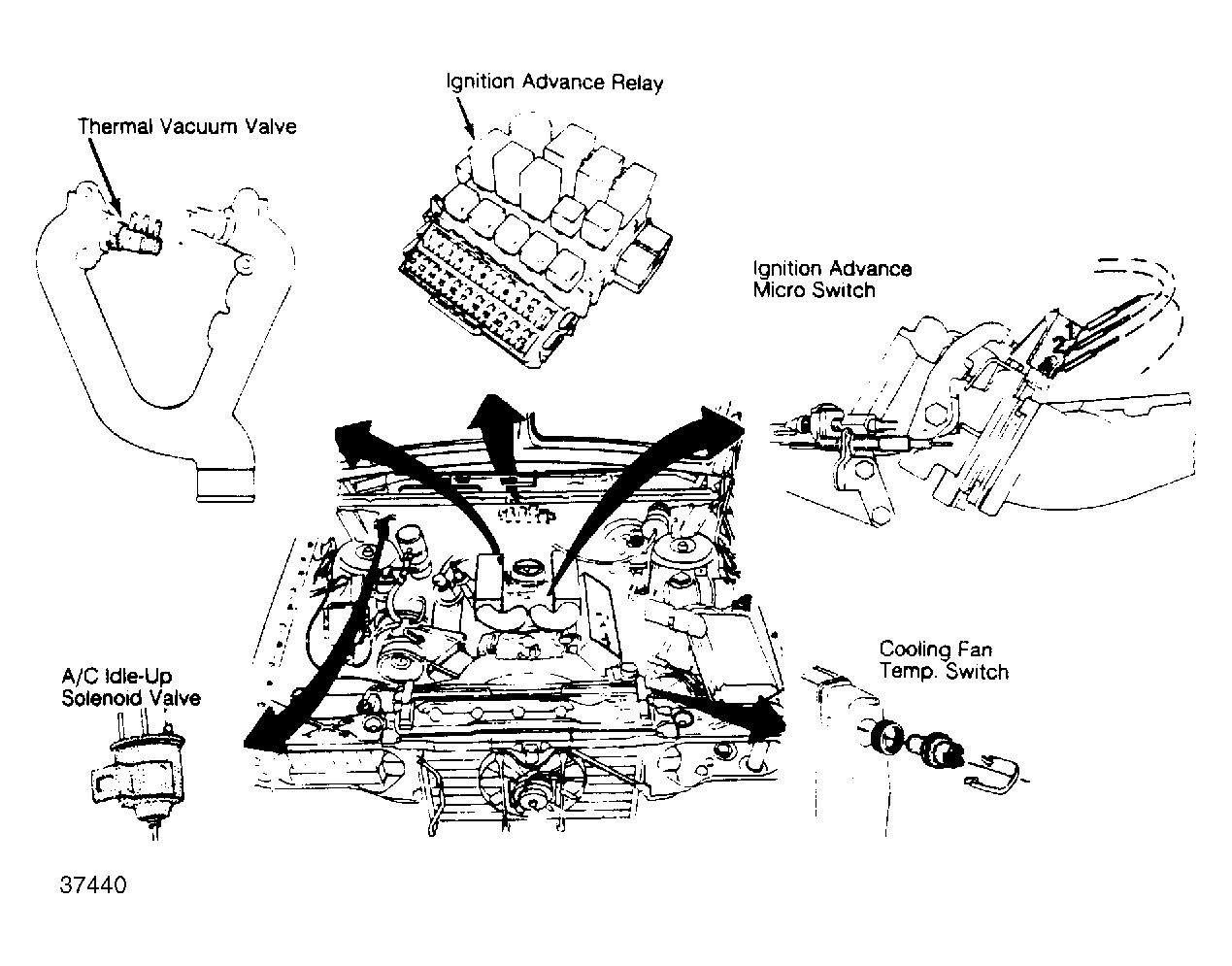

| Cooling Fan Temperature Switch | In tank on left side of radiator. See Figure . |
| CIS Micro Switch | On inner side of left air runner. See Figure . |
| Courtesy Light Switch | One at each door jamb. |
| Cruise Control Brake Switch | On bracket above brake pedal. See Figure . |
| Cruise Control Clutch Switch | On bracket above clutch pedal. See Figure . |
| EFI Thermal Time Switch | On right side of mixture control unit. See Figure . |
| Ignition Advance Micro Switch | Below front inside corner of right air runner. See Figure . |
| Neutral/Start Switch | Left side of transmission. |
| Oxygen Sensor Micro Switch | Below front outer corner of left air runner. See Figure . |
| Oxygen Sensor Thermal Switch | In coolant passage under intake manifold. See Figure . |
| Parking Brake Switch | Under front portion of parking brake. |
| Pressure Differential Switch | On electronic ignition control unit. See Figure . |
