Test Connections

  1. Connect LED tester Red wire to battery positive terminal, Red/Yellow wire to ignition system test point (Red/Yellow wire on left side of engine compartment). See Fig 1.
  2. Route LED test leads along fender and place LED on dashboard. Road test vehicle and have an assistant monitor LED. The LED will flash according to ignition system malfunctions.

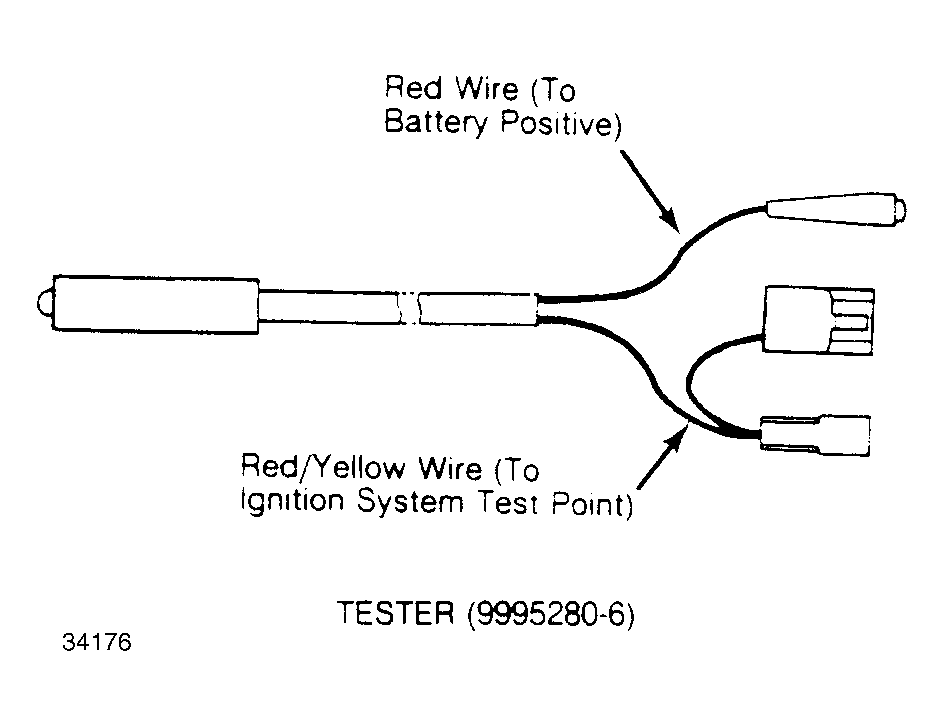

Fig 1: Volvo Light Emitting Diode (LED) Tester
G34176
