Fuel Injection System - Diesel: Description

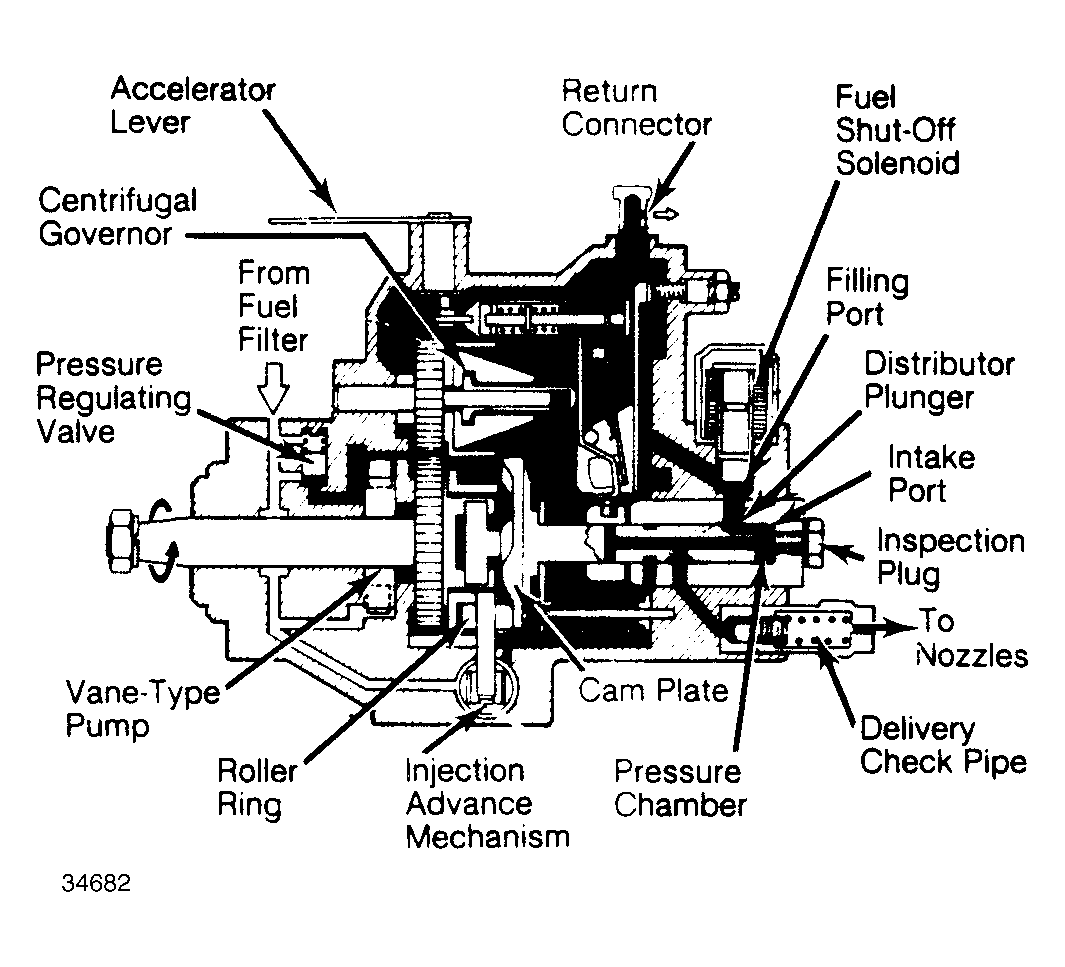

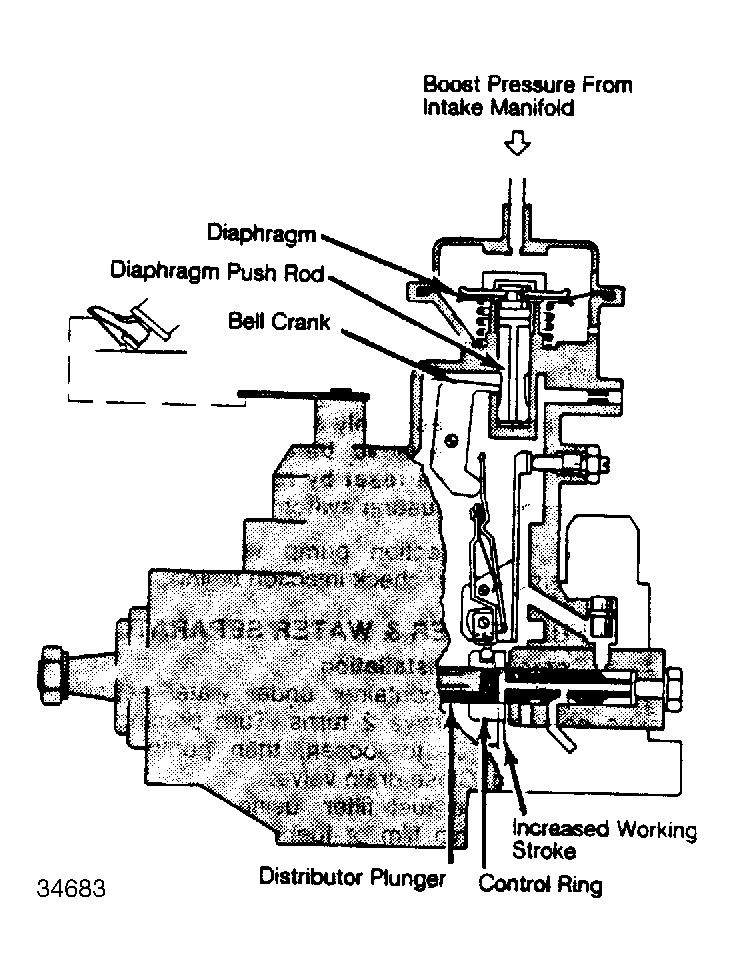

The diesel fuel injection systems consist of the fuel tank, fuel filter, distributor-type injection pump, glow plug system, throttling pintle injection nozzles, and a centrifugal governor. See Fig 1 . Turbo diesel models have a boost compensator to enrich fuel mixture during turbocharger operation. See Figure .
A vane type fuel pump, built into the injection pump, supplies fuel from the fuel filter to the injection pump. Injection pump supplies fuel to injection nozzles under high pressure, according to firing sequence 1-5-3-6-2-4. Excess fuel is returned to the fuel tank by return lines. The injection pump is also equipped with a cold start device which facilitates cold weather starting and reduces exhaust smoke.
