Service Point Locations

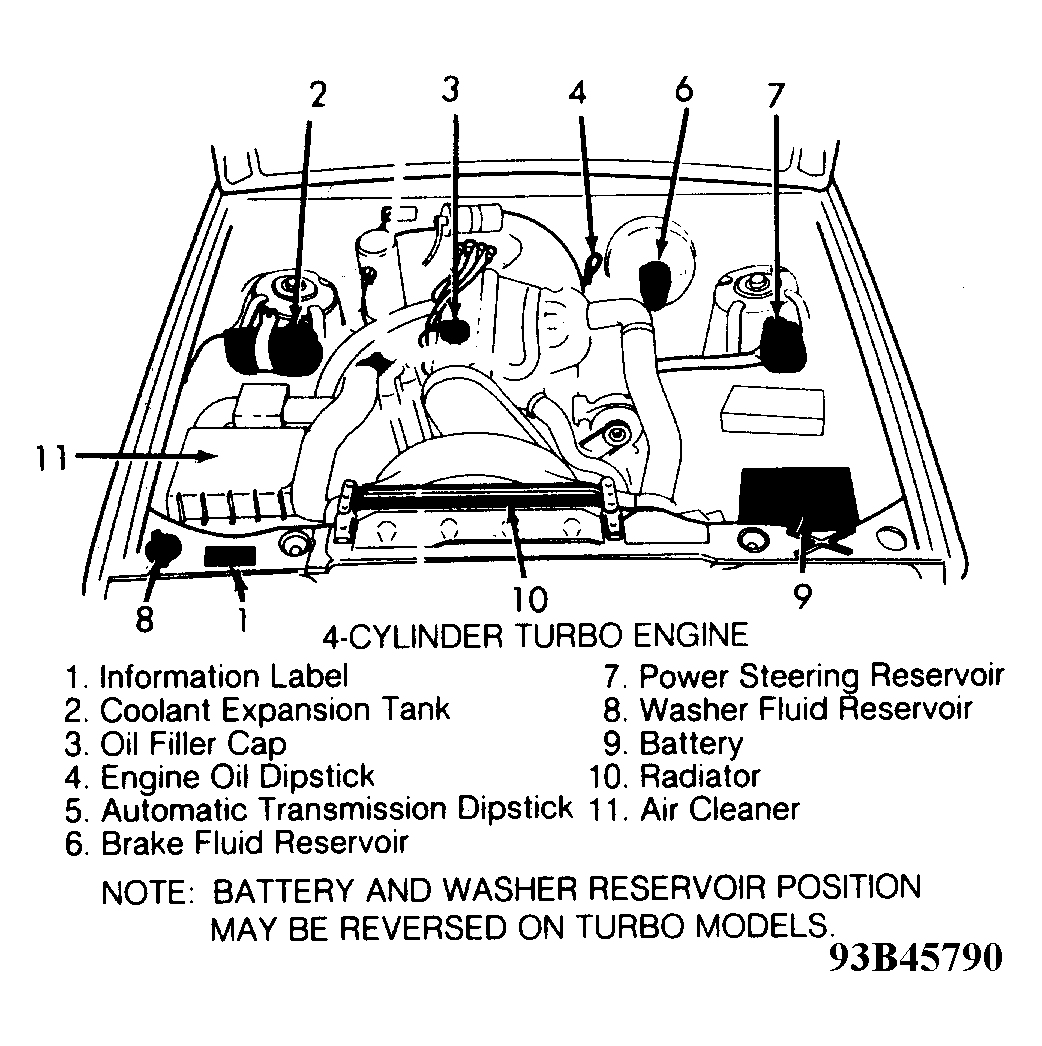

Fig 1: Service Point Locations (2.3L 4-Cyl. Turbo)
Courtesy of VOLVO CARS OF NORTH AMERICA.

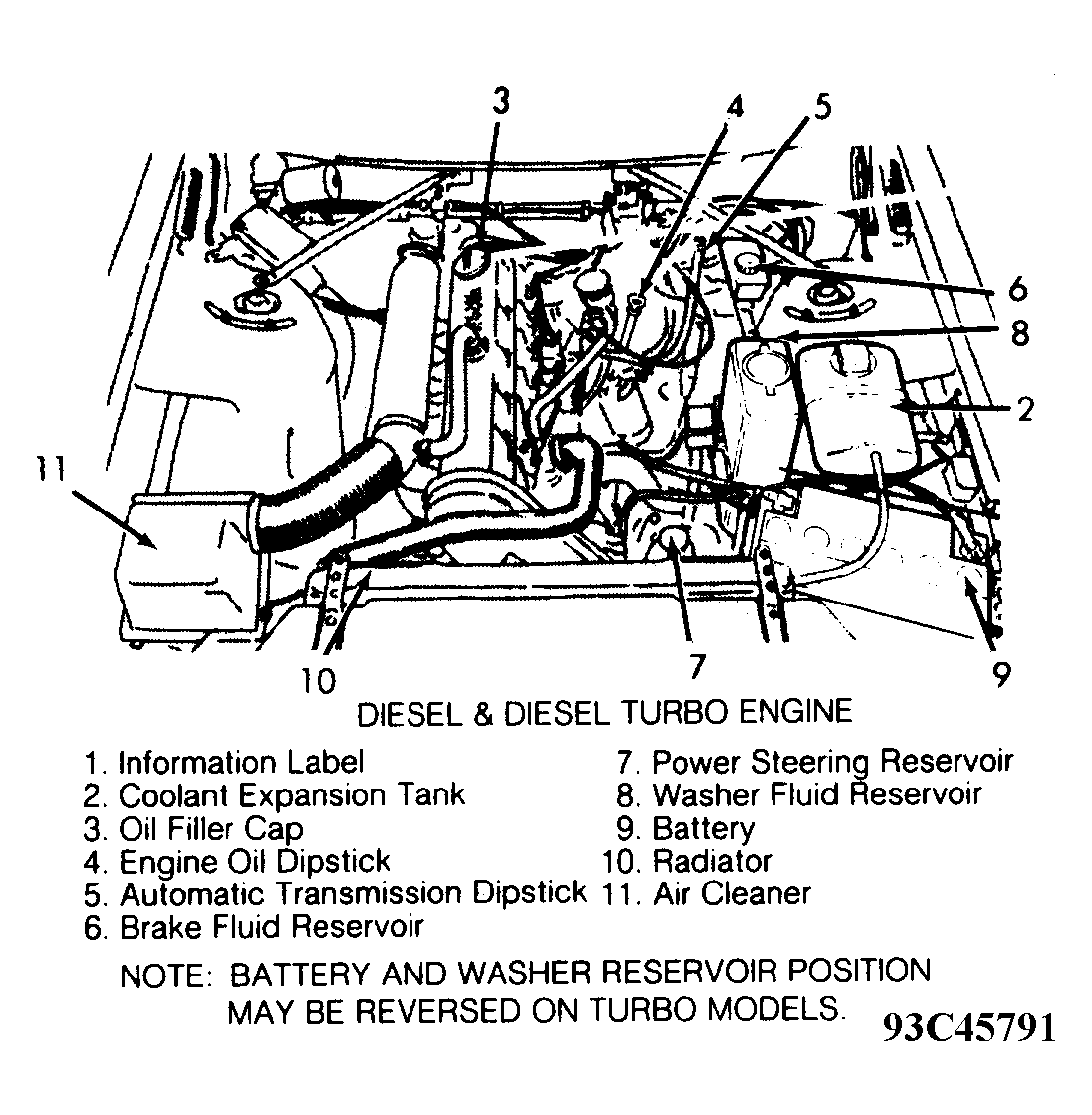

Fig 2: Service Point Locations (Diesel Engine)
Courtesy of VOLVO CARS OF NORTH AMERICA.

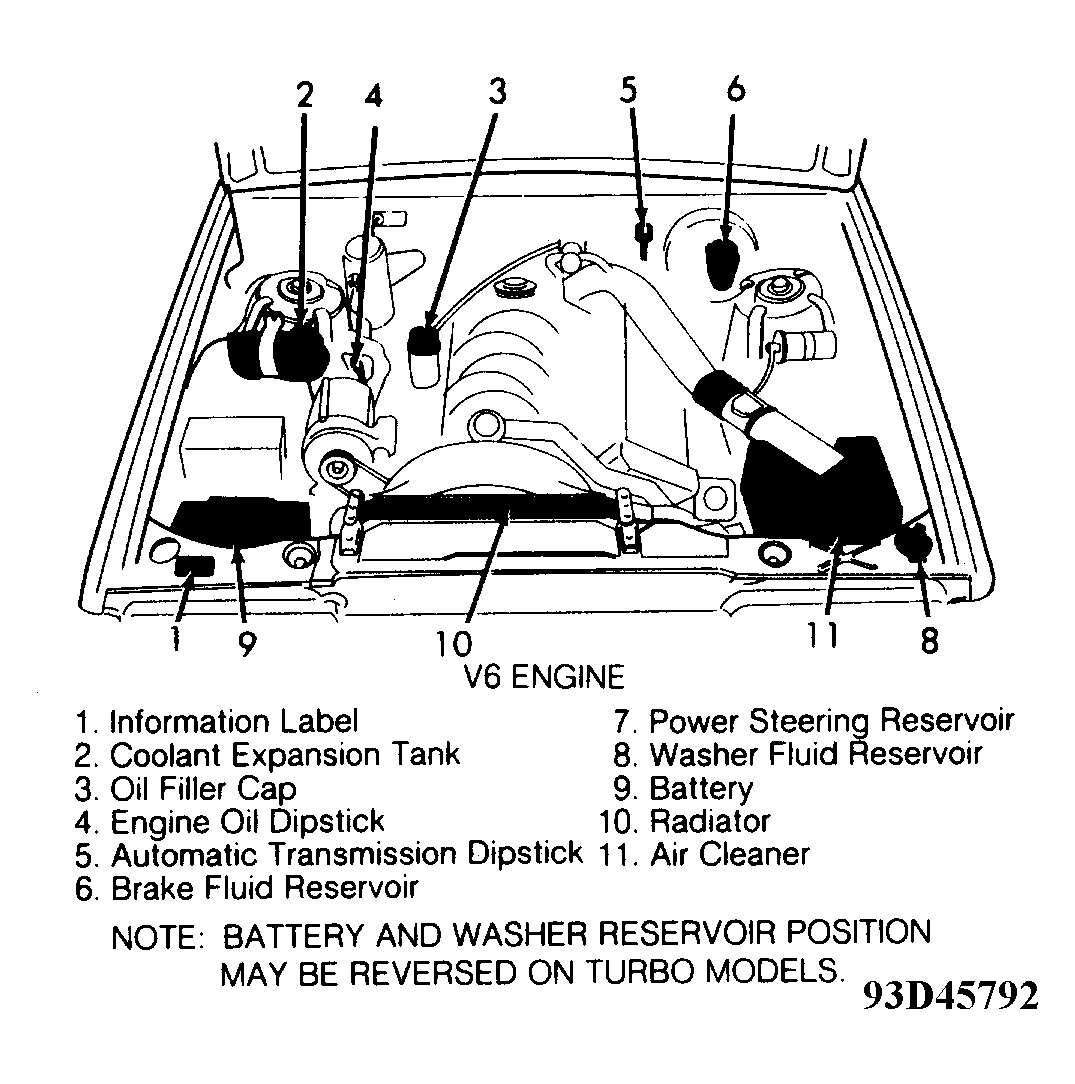

Fig 3: Service Point Locations (2.8L V6)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
