Wheel Alignment Specifications & Procedures: Adjustment: Caster

On GL, DL and Turbo, caster is not adjustable. If caster is not within specifications, check front end components for wear or damage and repair or replace as necessary.

On 760 GLE, adjust caster by removing upper mount nuts and turning to correct position. See Fig 1 .

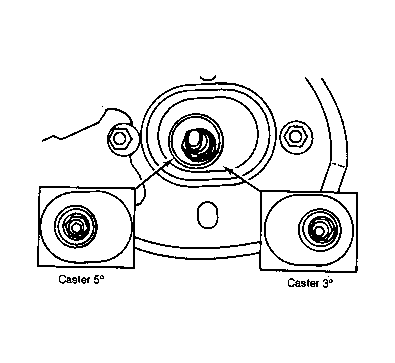

Fig 1: Caster Location Adjustments (760 GLE)
G50212
