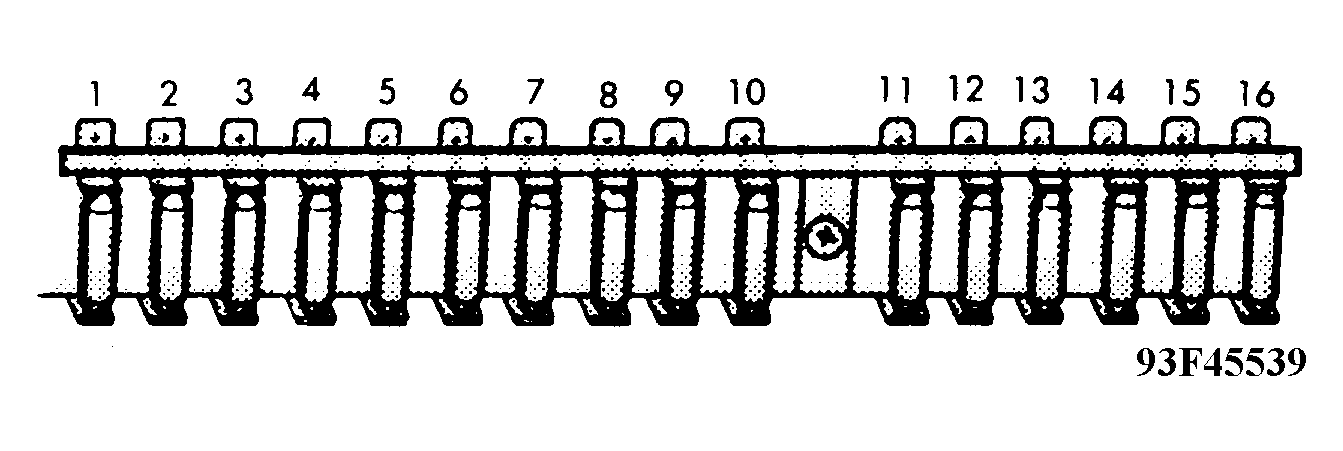

Fuse Panel Identification: Notes

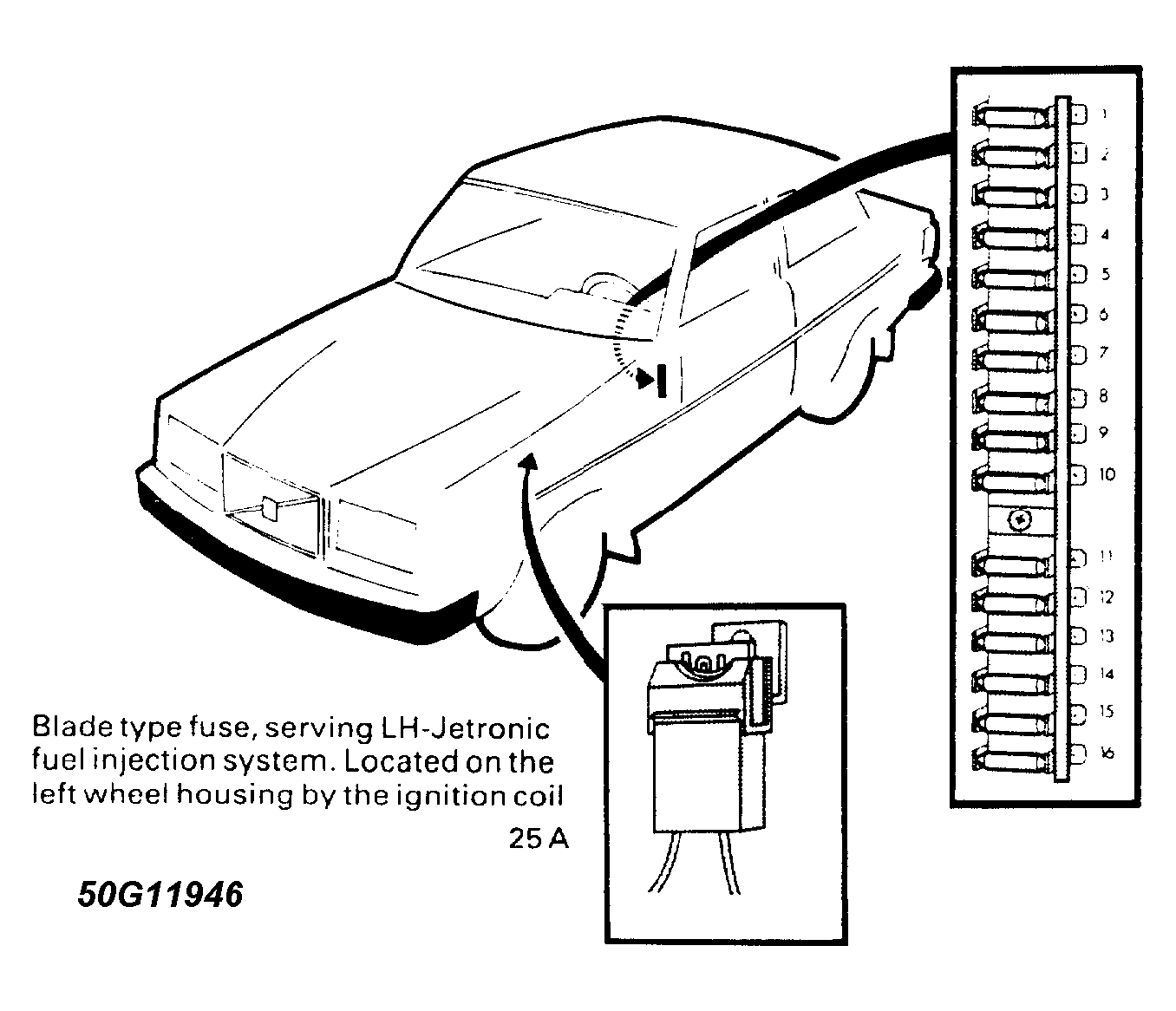

Fig 1: Fuse Panel Identification (1983)

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: The LH-Jetronic II fuel injection system (if equipped) is protected by a 25 Amp blade type fuse located on the left wheel housing by the ignition coil. See Figure .
