Fuel Injection System - BOSCH LH: Wiring Diagram

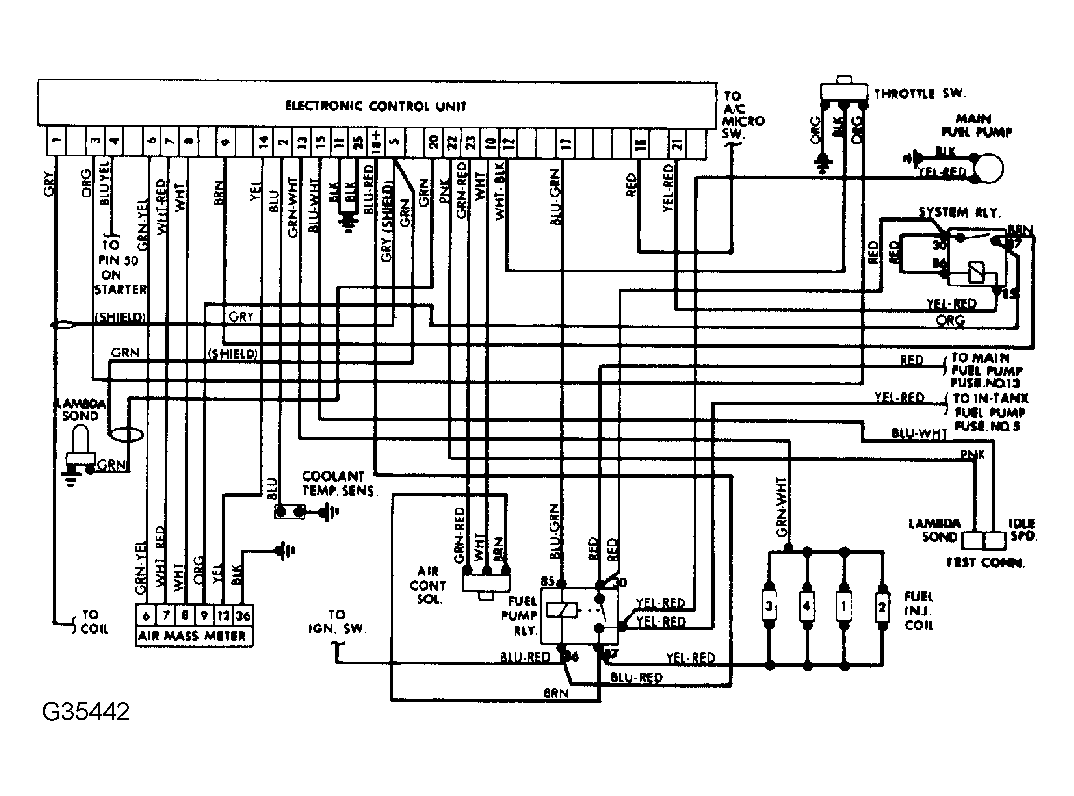

Fig 1: LH Jetronic Fuel Injection System Wiring Diagram

G35442
