Additional Service Information

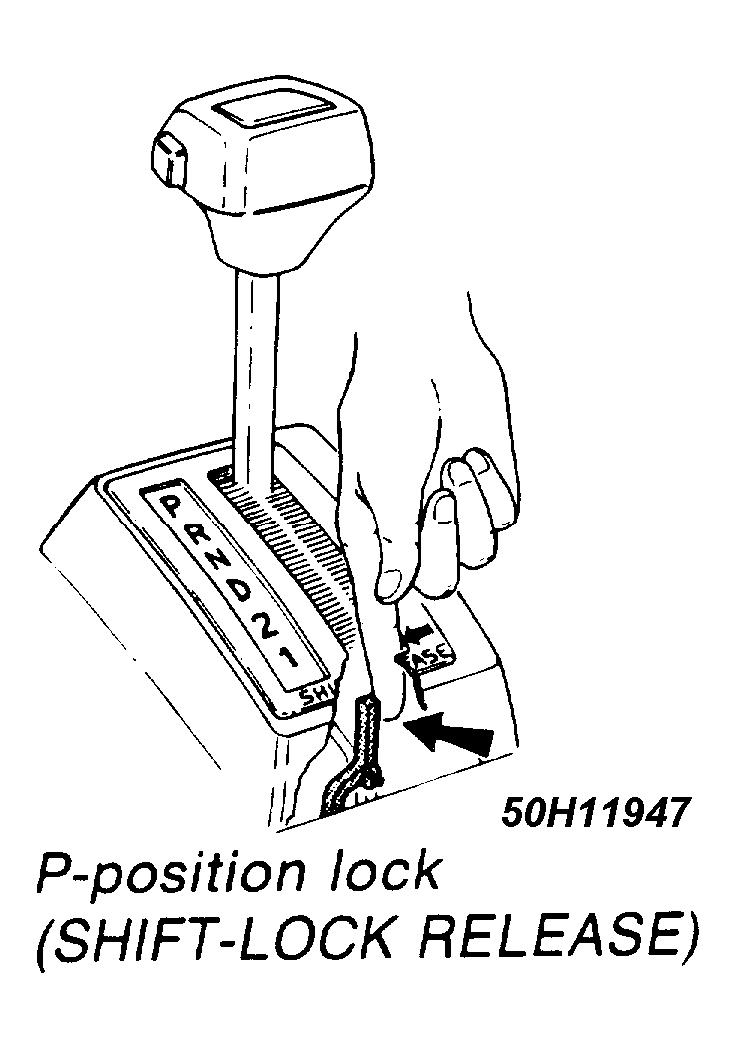

Fig 1: Releasing Shift Interlock (1991 Models Only)

Courtesy of VOLVO CARS OF NORTH AMERICA

With gear selector in Park, depress brake pedal.
Move gear selector to desired position.
If gear selector DOES NOT MOVE, check fuse #12.
TO MANUALLY RELEASE gear selector, push finger between brushes at base of shifter and push catch to the left. See Fig 1 .
Select a gear.

NOTE: 1986-90 models are not equipped with a shift interlock.
