Suspension Torque Specifications

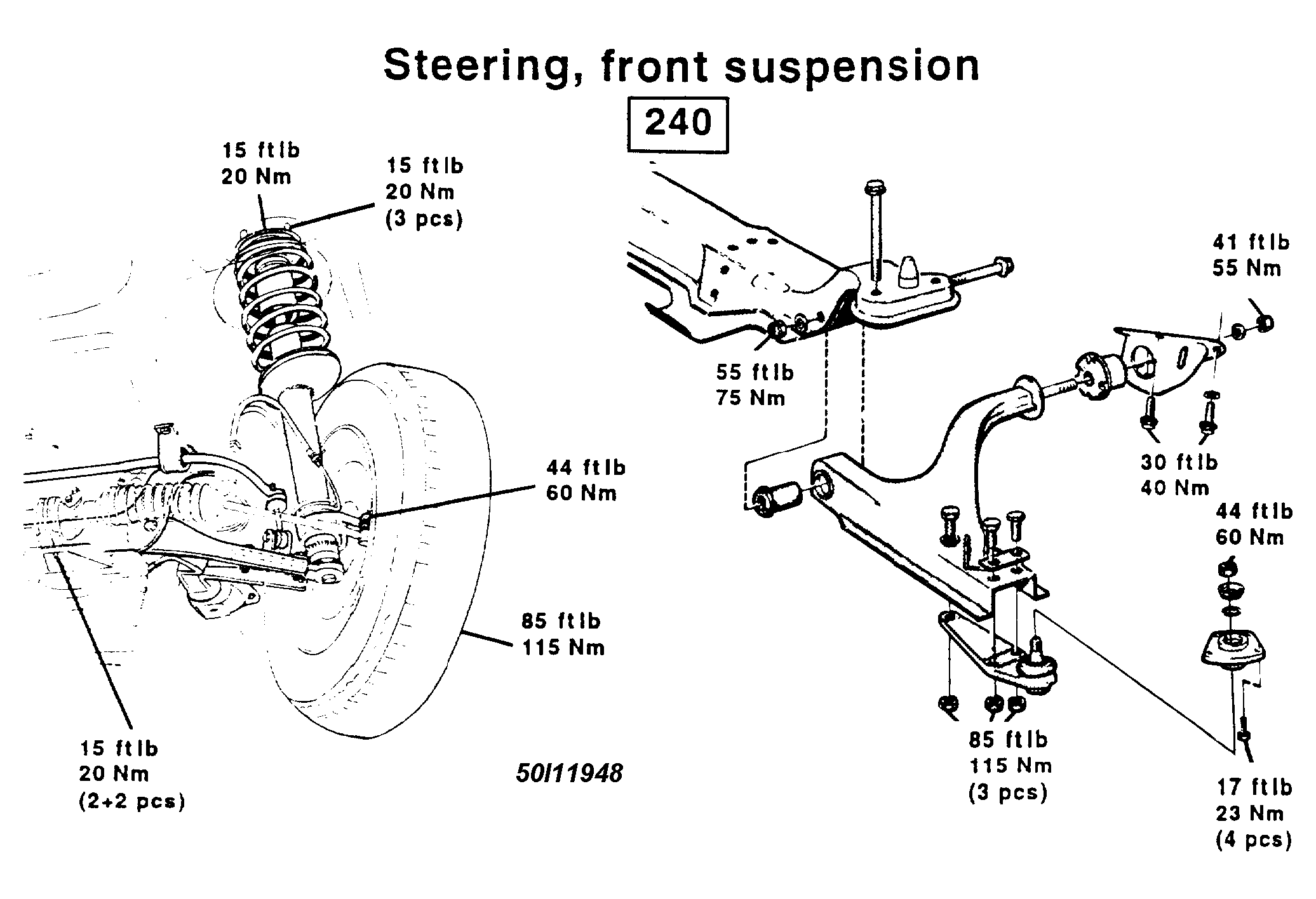

Fig 1: Front Suspension Torque Specifications (Typical)
Courtesy of VOLVO CARS OF NORTH AMERICA

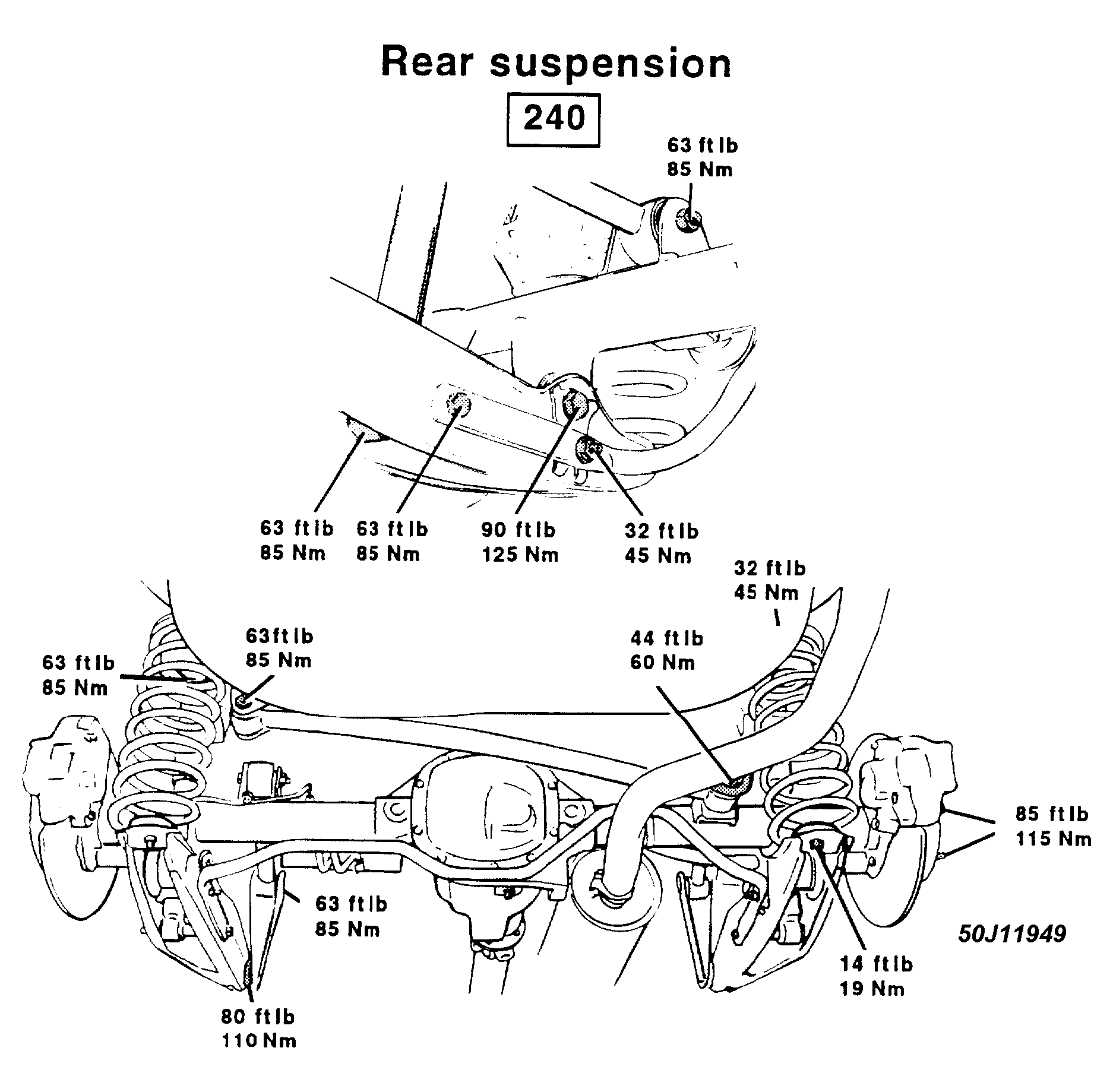

Fig 2: Rear Suspension Torque Specifications (Typical)
Courtesy of VOLVO CARS OF NORTH AMERICA
Courtesy of VOLVO CARS OF NORTH AMERICA
Courtesy of VOLVO CARS OF NORTH AMERICA
