Connecting Hoses & Pipes

All crankcase ventilation systems use connecting hoses and pipes to carry crankcase gases, engine vacuum and/or outside air. Hoses and pipes should be checked for clogging and leaks and replaced as necessary.

Fig 1: Crankcase Ventilation System (4-Cylinder)

Courtesy of VOLVO CARS OF NORTH AMERICA.

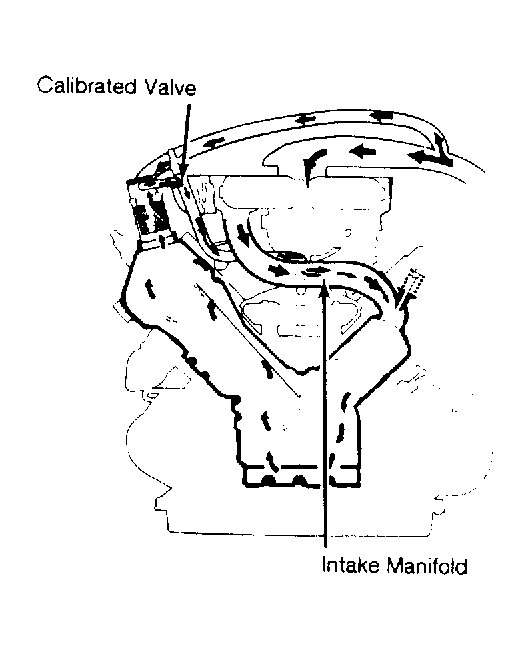

Fig 2: Crankcase Ventilation System (6-Cylinder)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Crankcase Ventilation System (Turbo)

Courtesy of VOLVO CARS OF NORTH AMERICA.
