V6 Ignition Timing

V6 IGNITION TIMING (Degrees BTDC @ RPM)

Application (1) Timing
760 GLE 16@750
(1) Ignition timing is computer controlled and is not adjustable.

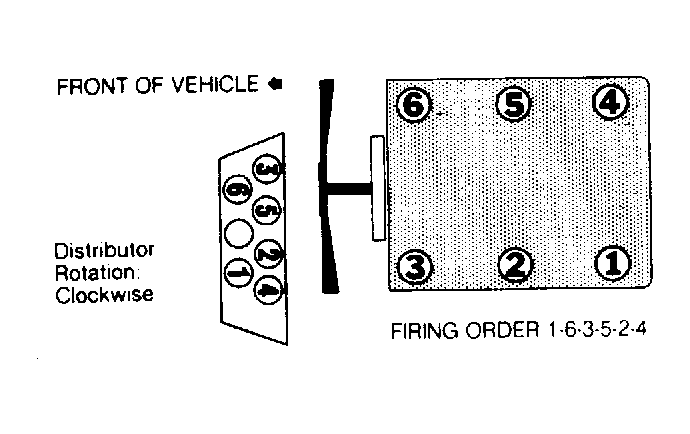

Fig 1: V6 Firing Order & Distributor Rotation
G61214
