Refilling Automatic Transmission Fluid

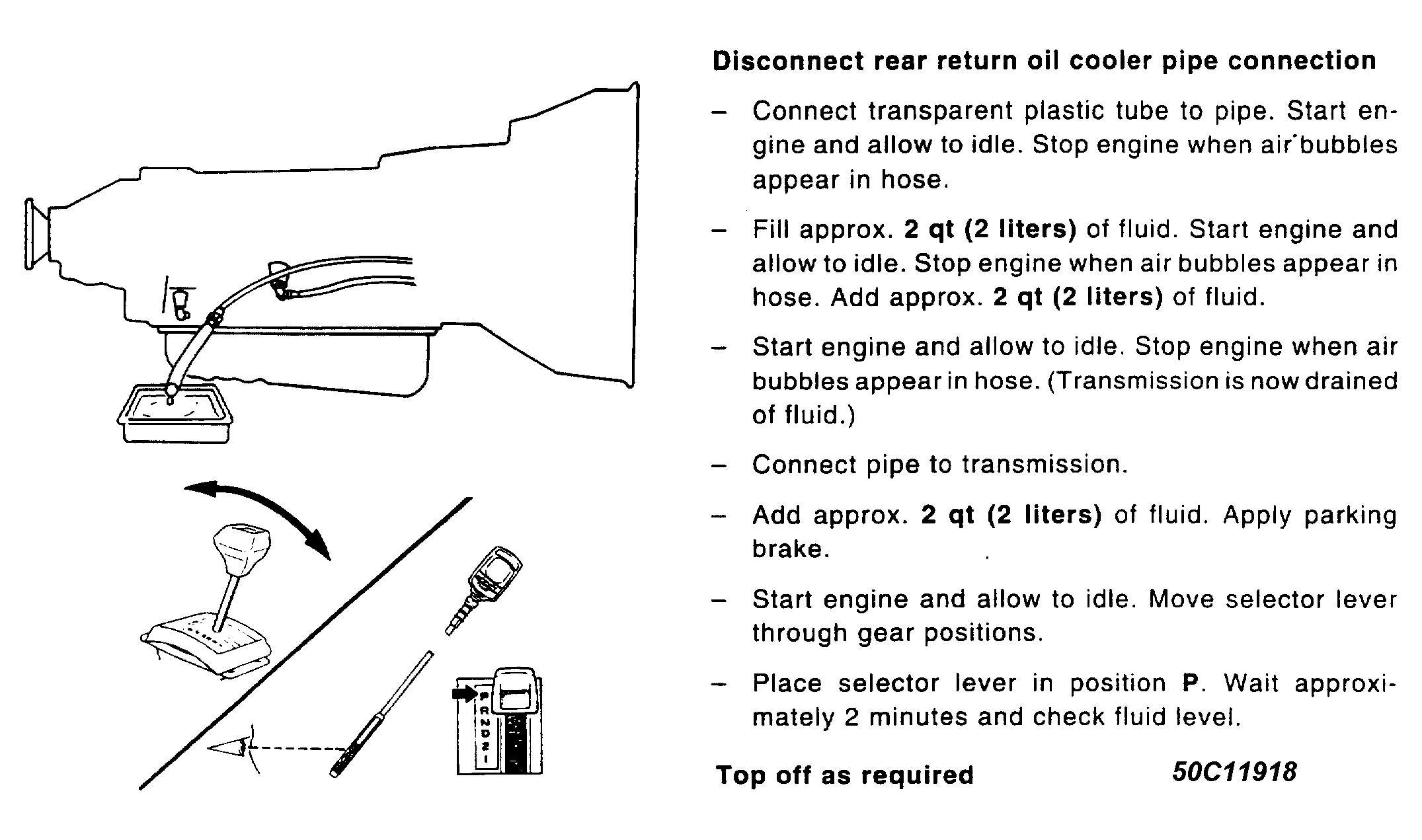

Fig 1: Refilling Automatic Transmission Fluid

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: For more information regarding manual transmission service refer to the TRANSMISSION SERVICING - A/T article in the TRANSMISSION/TRANSAXLE section.
