Firing Order: Notes

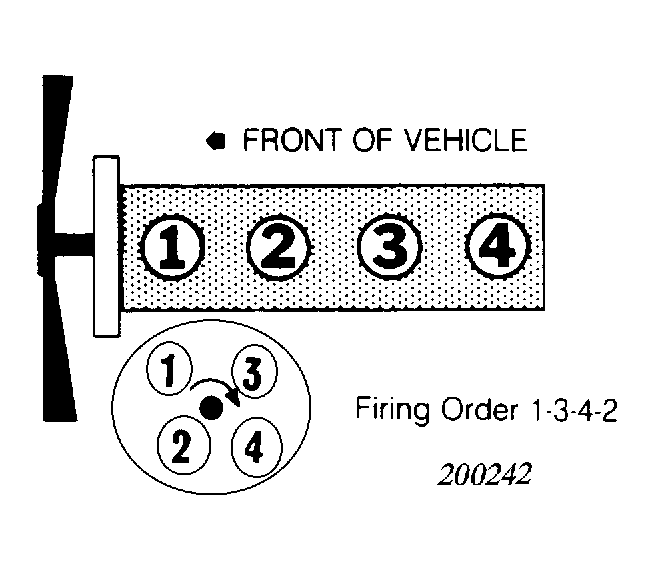

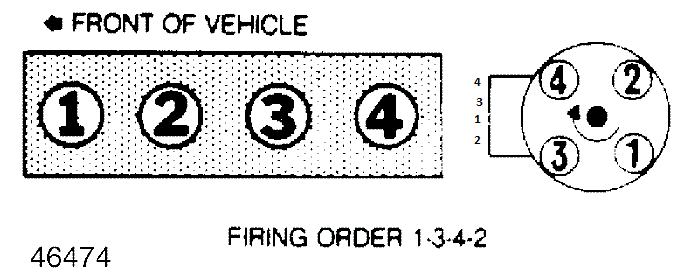

For firing order and distributor rotation on 240, see Figure. For firing order and distributor rotation on 740 and 940, see Figure. For firing order on 960, see Figure.
