Start Inhibitor Function

The gear selector lever is provided with a start inhibit function to prevent starting of engine while gear is selected. this feature ensures that engine can be started only in position "P" or "N", preventing vehicle from moving accidentally at the instant of starting.

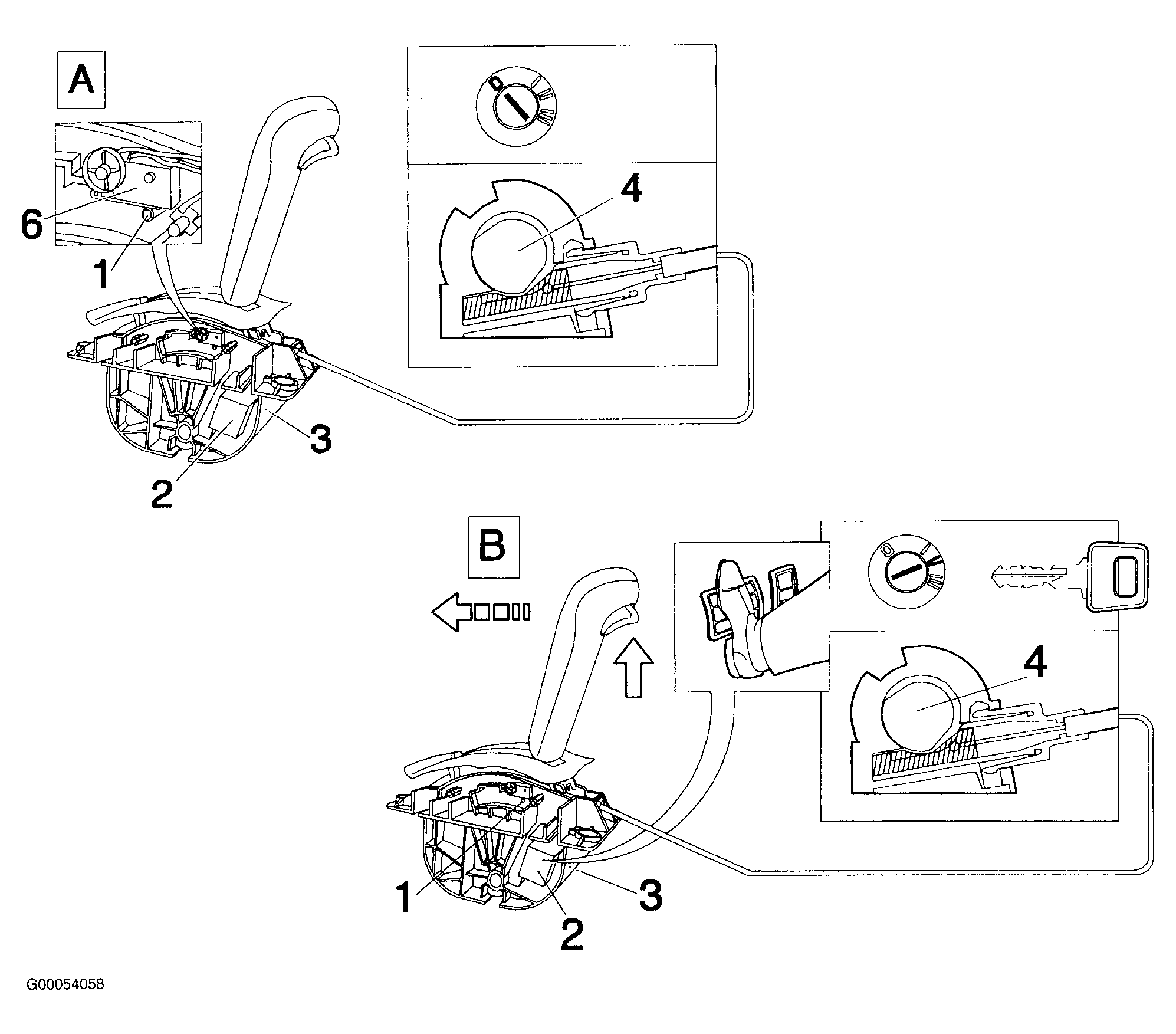

Fig 1: Shift Lock & Key Lock Functions (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

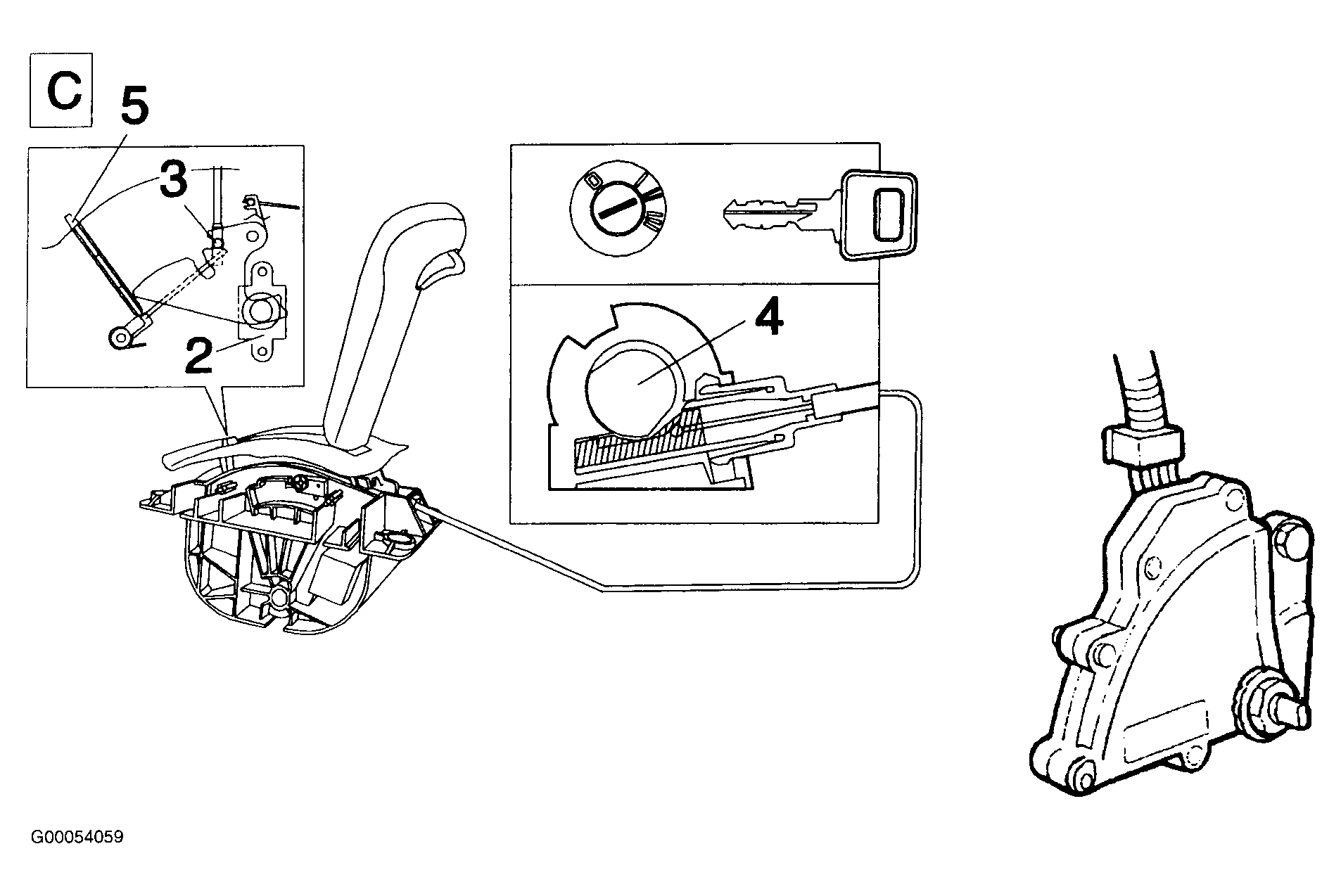

Fig 2: Shift Lock & Key Lock Functions (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
