Basic Throttle Setting
NOTE:
If basic throttle setting is adjusted, throttle position will change. Therefore, throttle switch must be adjusted whenever basic throttle setting is adjusted. See THROTTLE SWITCH under THROTTLE CONTROLS
.

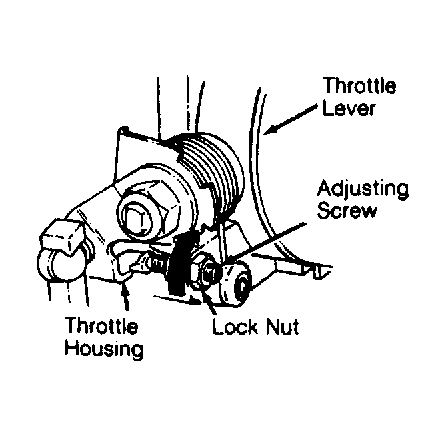

Loosen basic throttle setting adjustment screw lock nut. See Fig 1 . Turn screw until throttle is completely closed. Tighten adjustment screw until it touches throttle lever and then turn an additional 1/2 turn. On all models, tighten lock nut, making sure not to change adjustment. Recheck basic throttle setting.
