Shift Lock & Key Lock

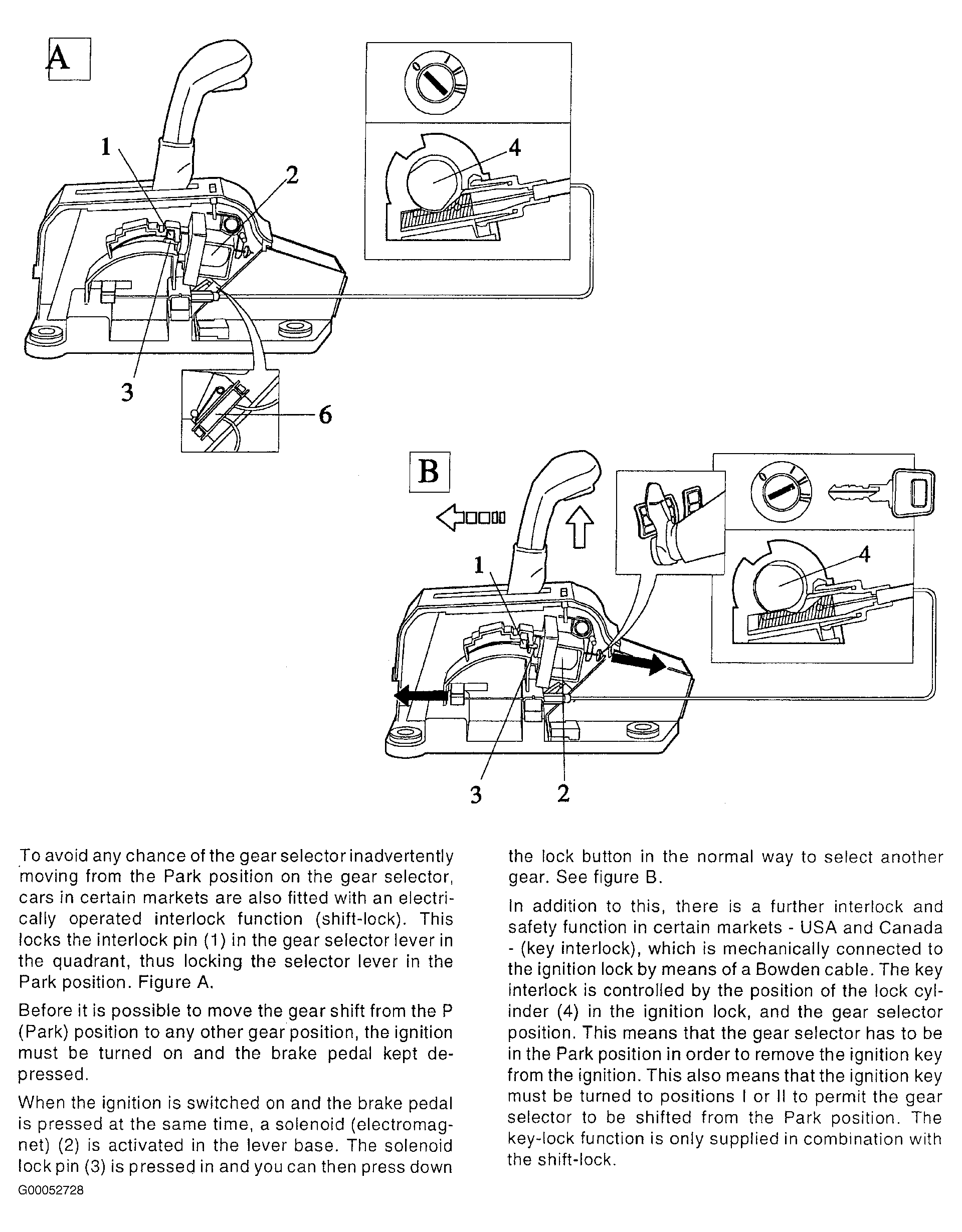

Fig 1: Shift Lock & Key Lock (1 Of 2)
G00052728Courtesy of VOLVO CARS OF NORTH AMERICA.

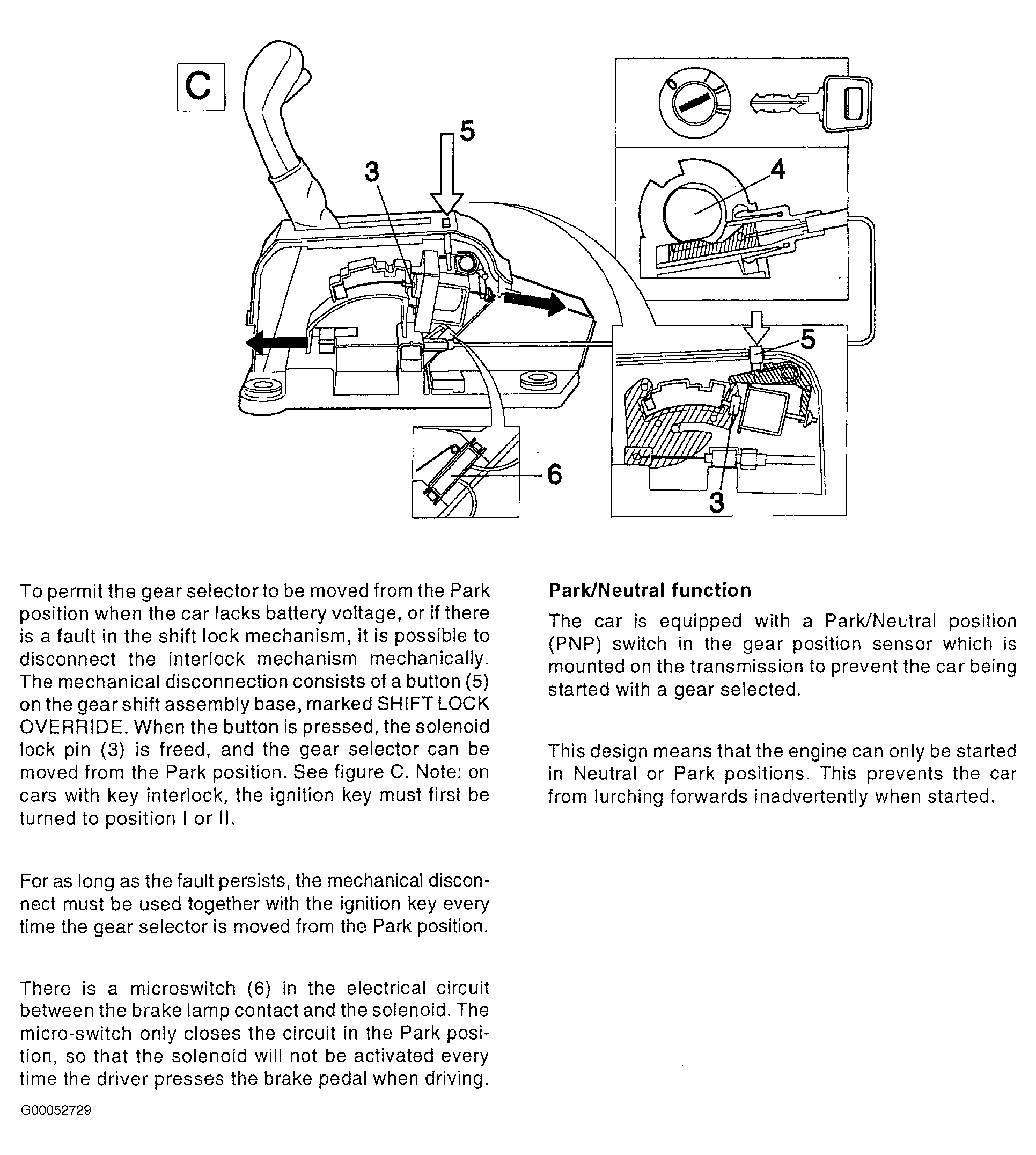

Fig 2: Shift Lock & Key Lock (2 Of 2)
G00052729Courtesy of VOLVO CARS OF NORTH AMERICA.
