Repair/Replacement & Adjustment Of Shift Lock Key Functions

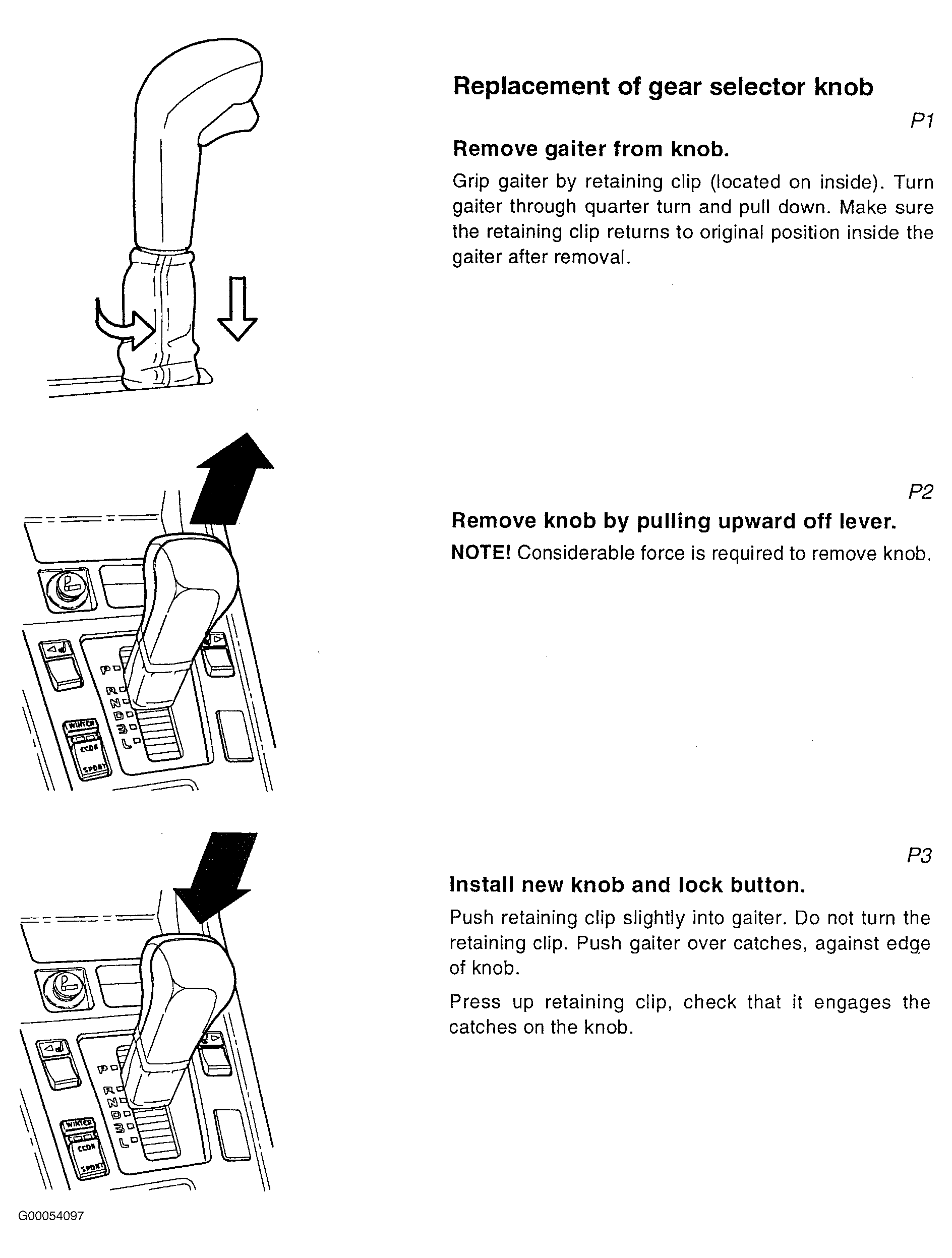

Fig 1: Removal & Installation Of Gear Selector Knob - Steps P1-P3

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Removal & Installation Of Selector Lever Gaiter - Steps P4-P6

Courtesy of VOLVO CARS OF NORTH AMERICA.

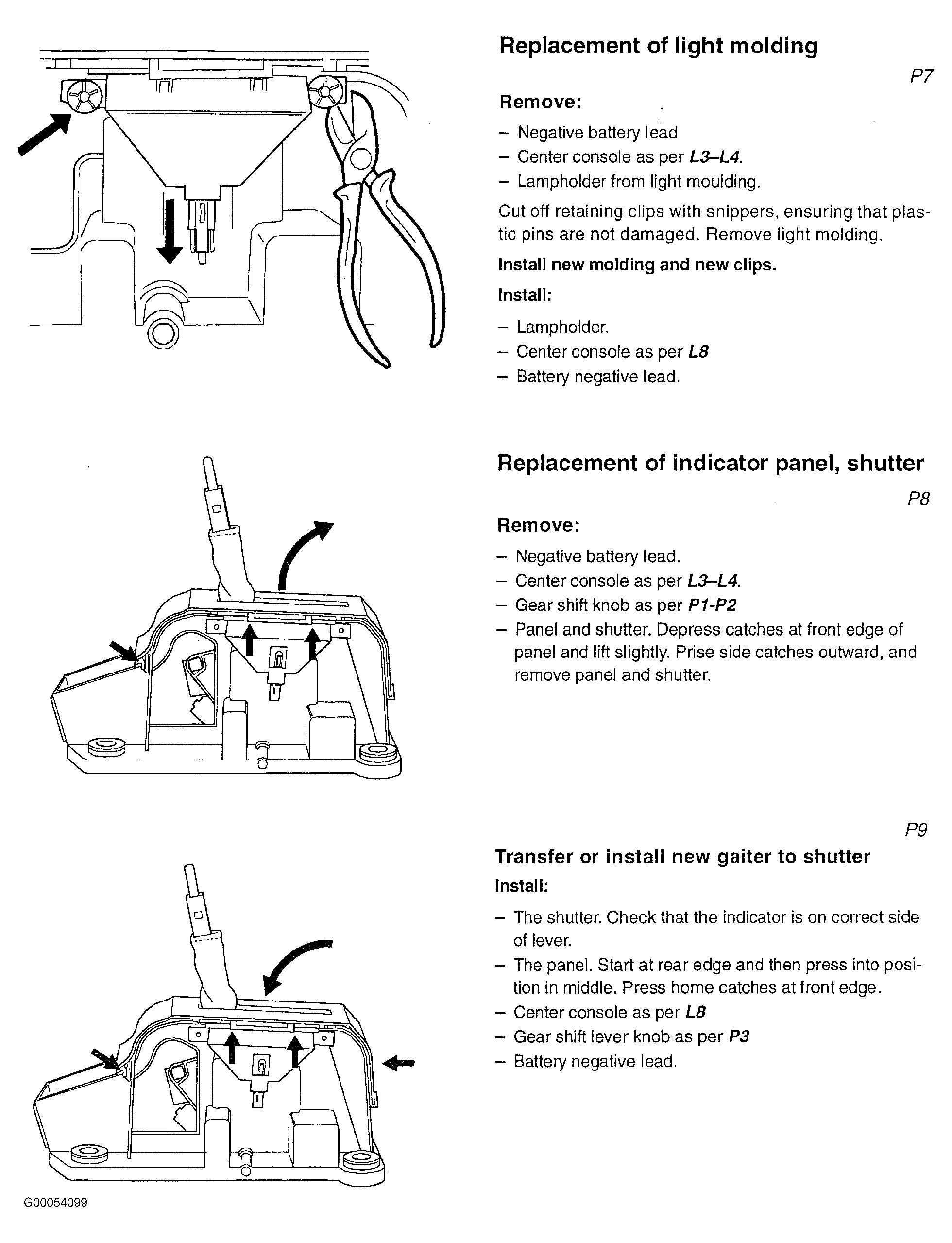

Fig 3: Replacement Of Molding - Steps P7-P9

Courtesy of VOLVO CARS OF NORTH AMERICA.

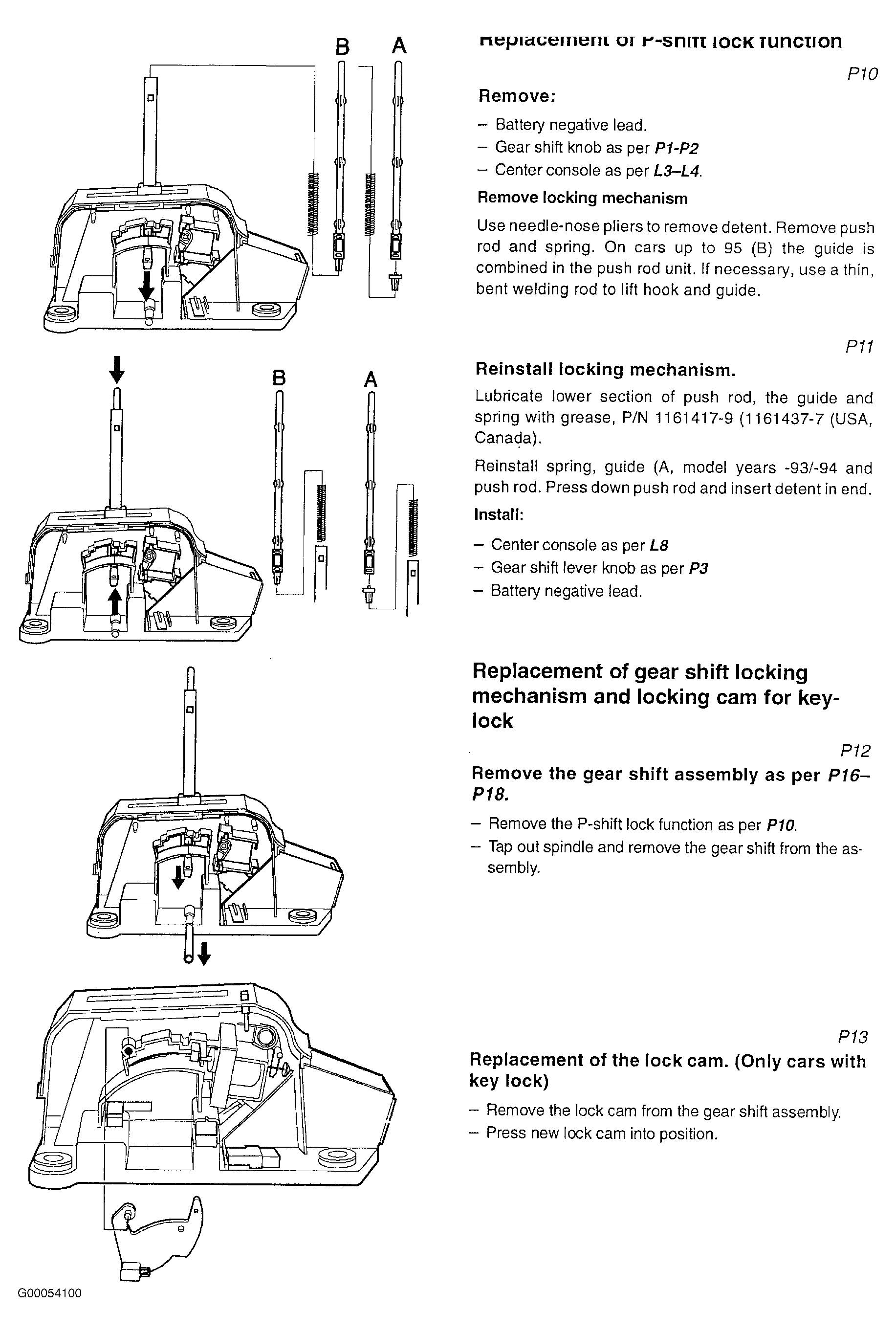

Fig 4: Replacement Of P-Shift Lock & Gear Shift Lock - Steps P10-P13

Courtesy of VOLVO CARS OF NORTH AMERICA.

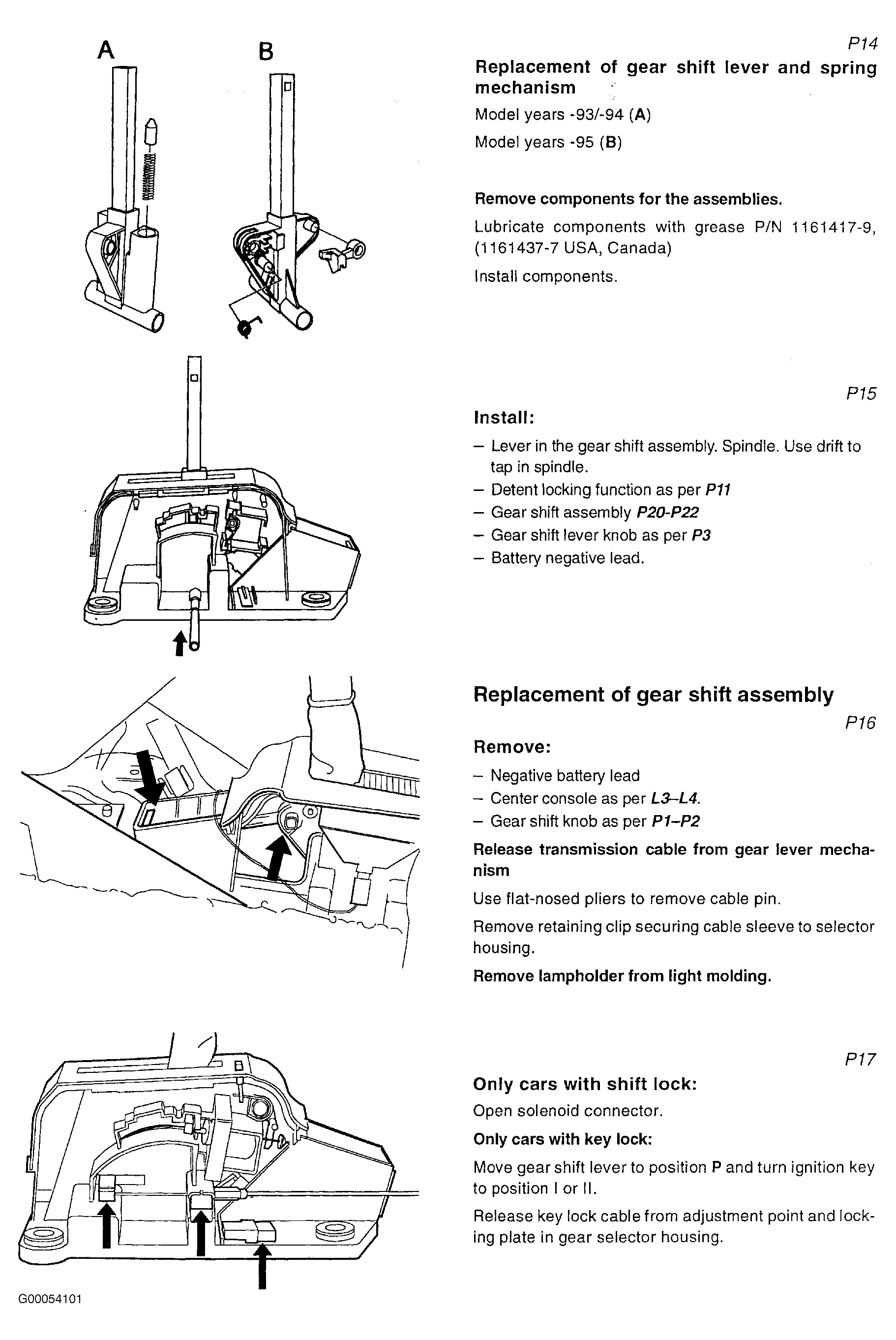

Fig 5: Replacement Of Gear Shift Lever/Spring Mechanism & Gear Selector Assembly - Steps P16-P17

Courtesy of VOLVO CARS OF NORTH AMERICA.

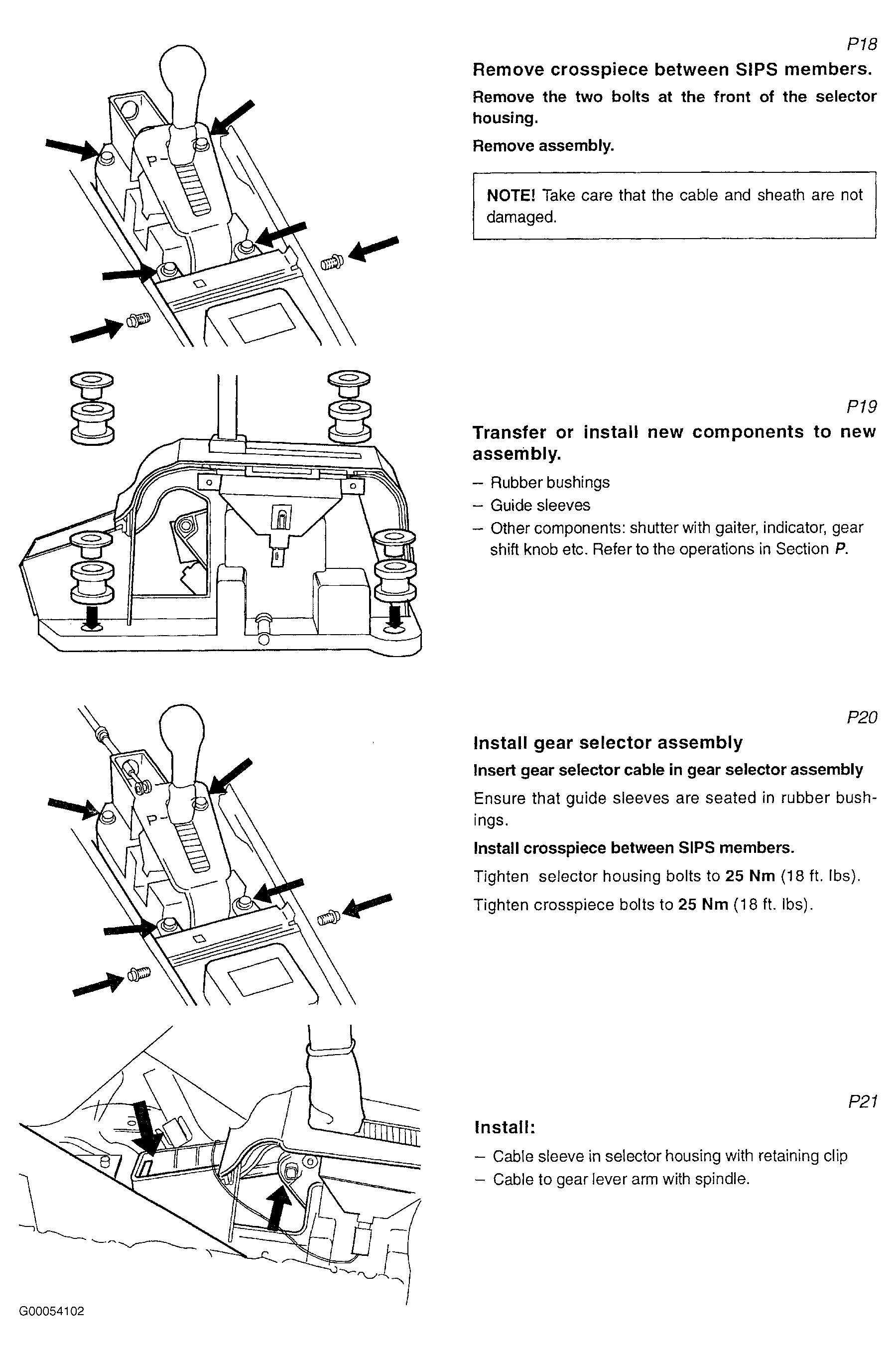

Fig 6: Installing Gear Selector Assembly - Steps P18-P21

Courtesy of VOLVO CARS OF NORTH AMERICA.

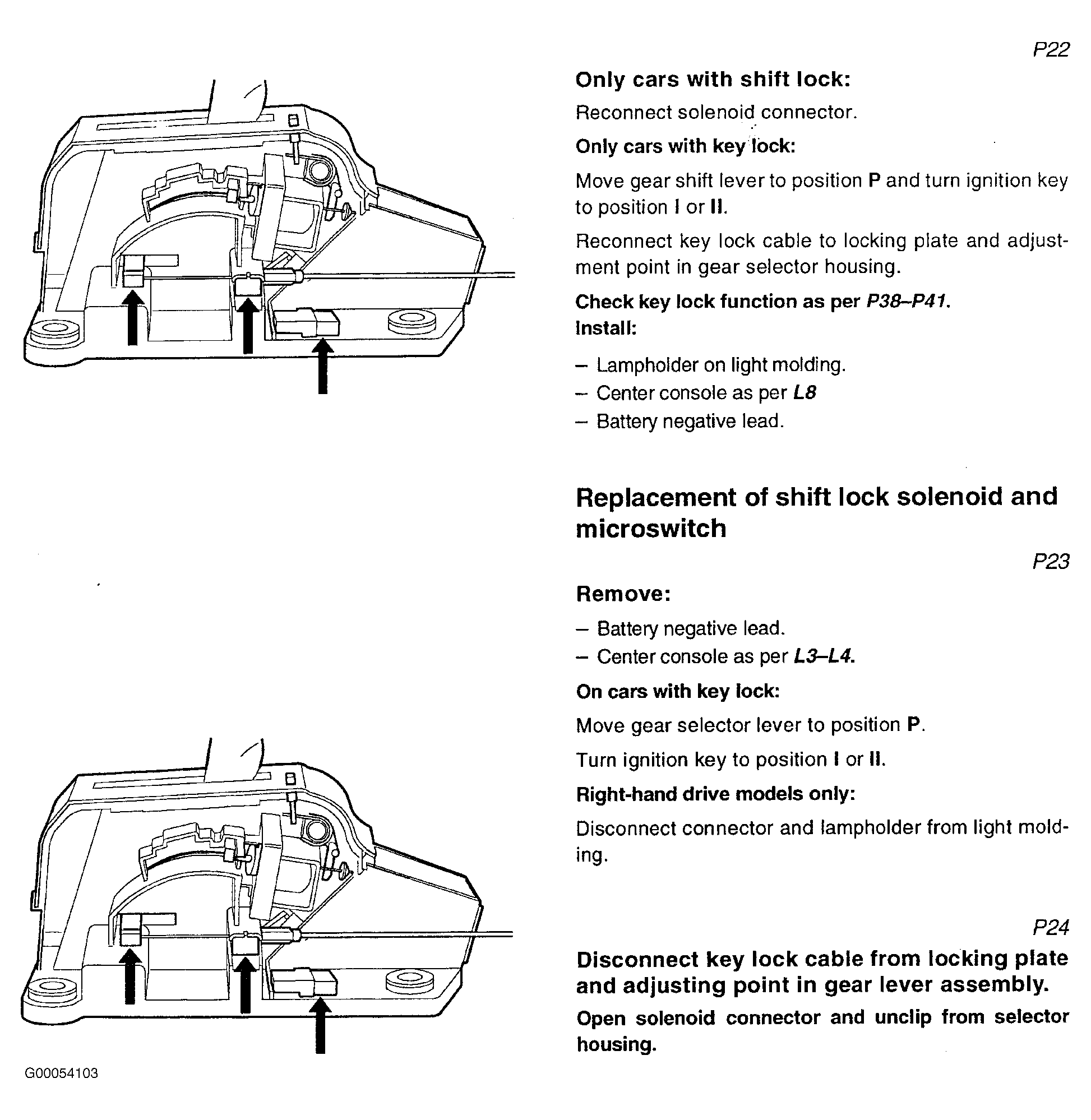

Fig 7: Replacement Of Shift Lock Solenoid & Microswitch - Steps P22-P24 (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

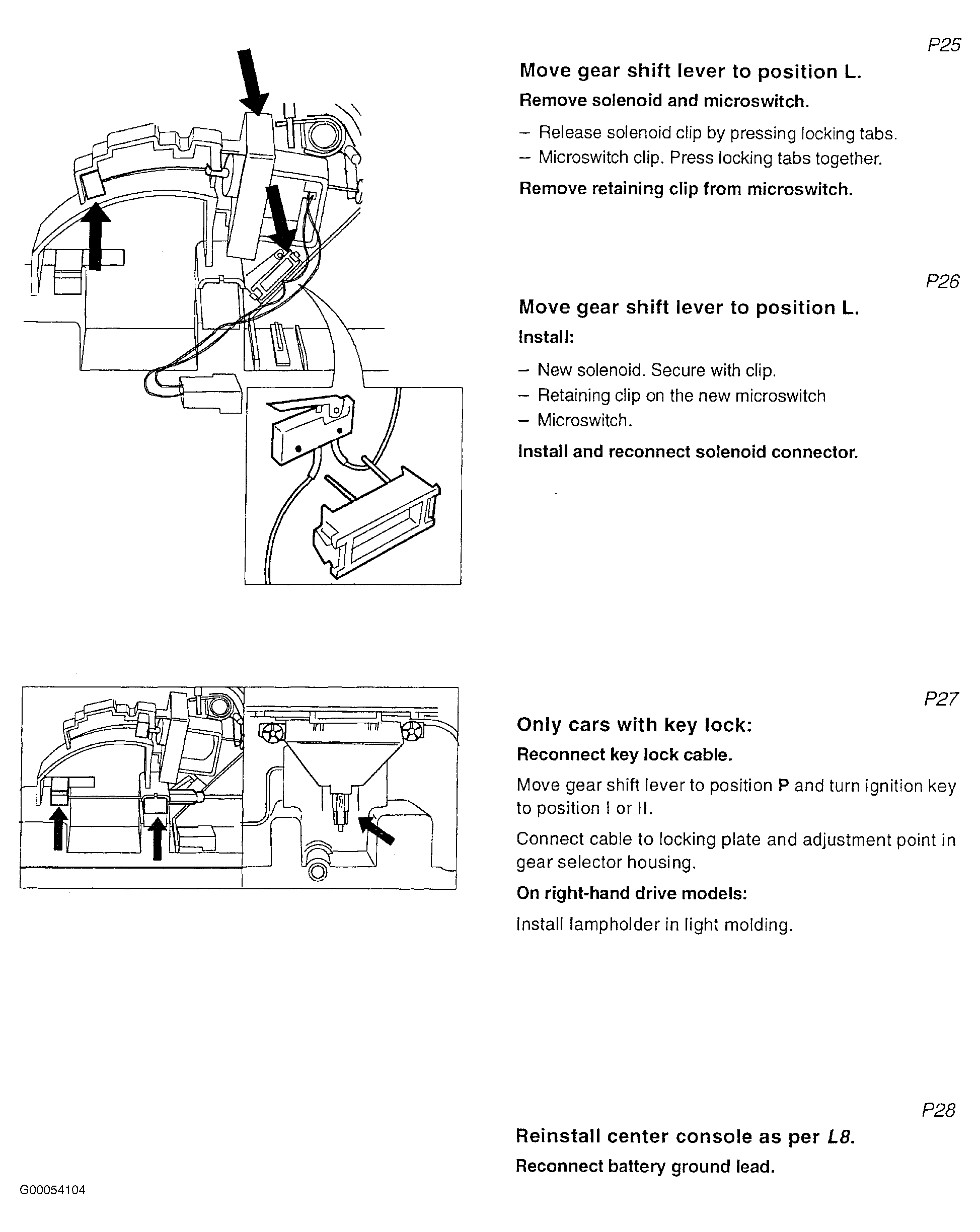

Fig 8: Replacement Of Shift Lock Solenoid & Microswitch - Steps P25-P28 (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

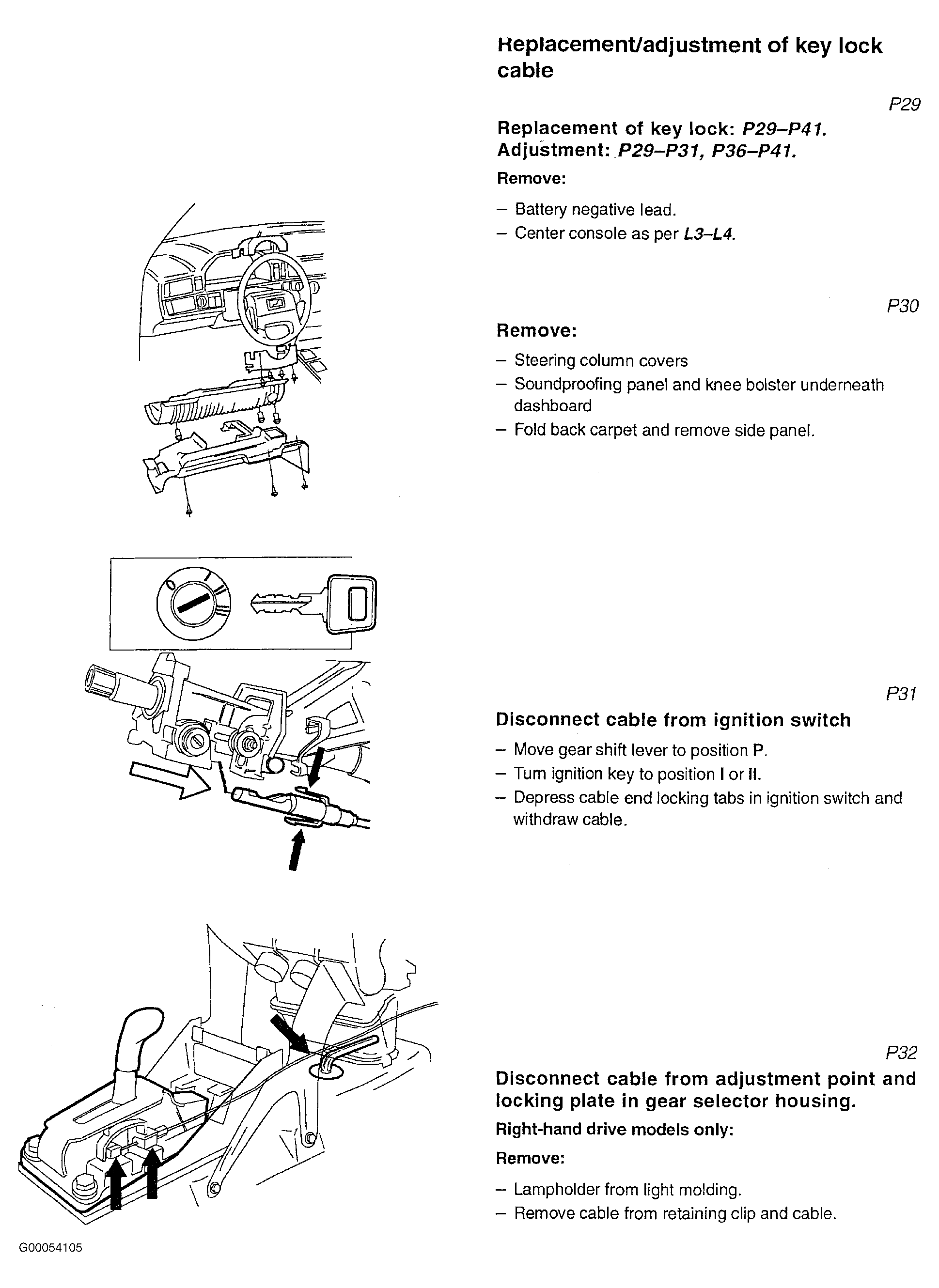

Fig 9: Removal & Installation Of Key Lock Cable - Steps P29-P32 (1 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

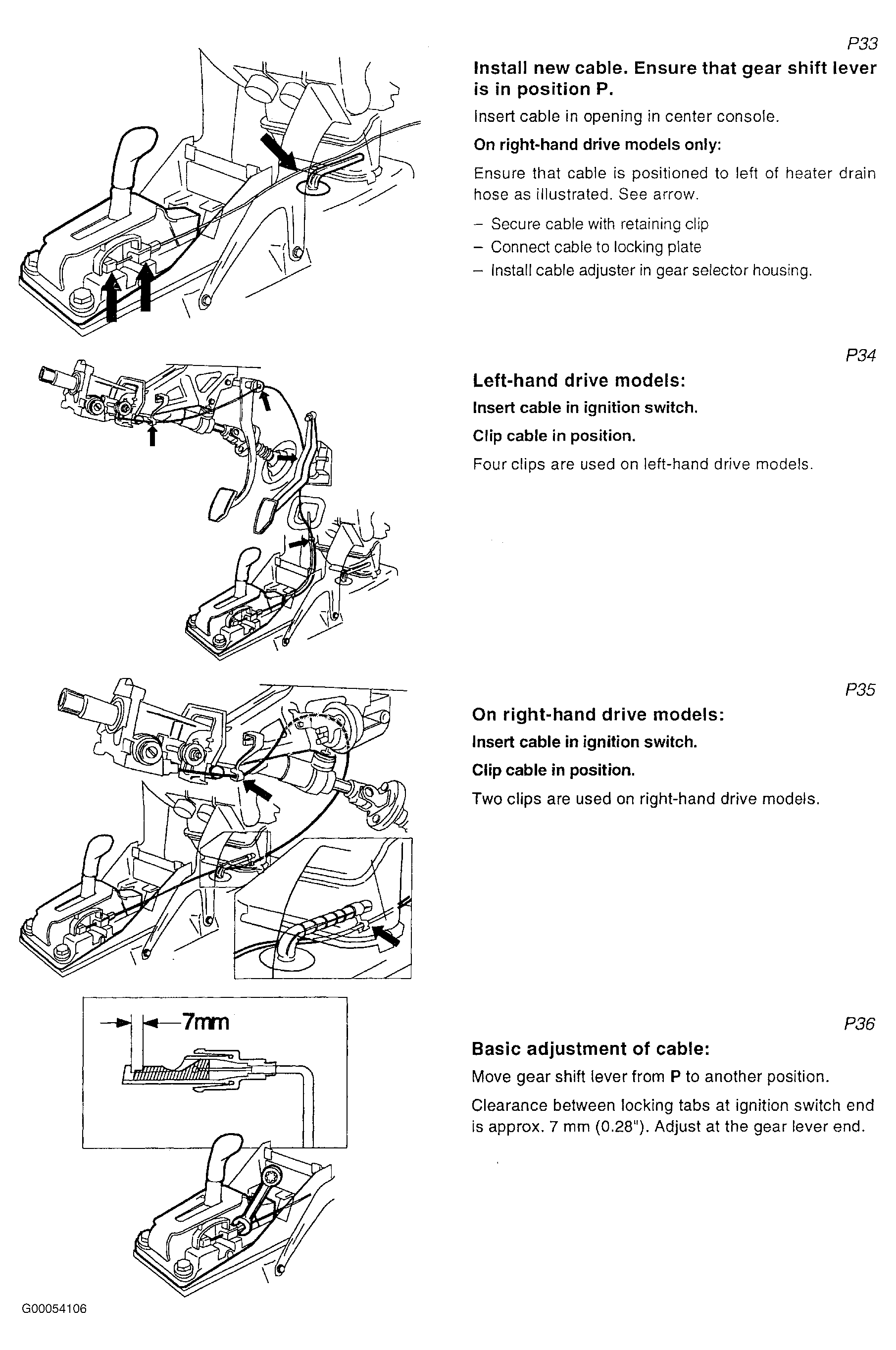

Fig 10: Removal & Installation Of Key Lock Cable - Steps P33-P36 (2 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

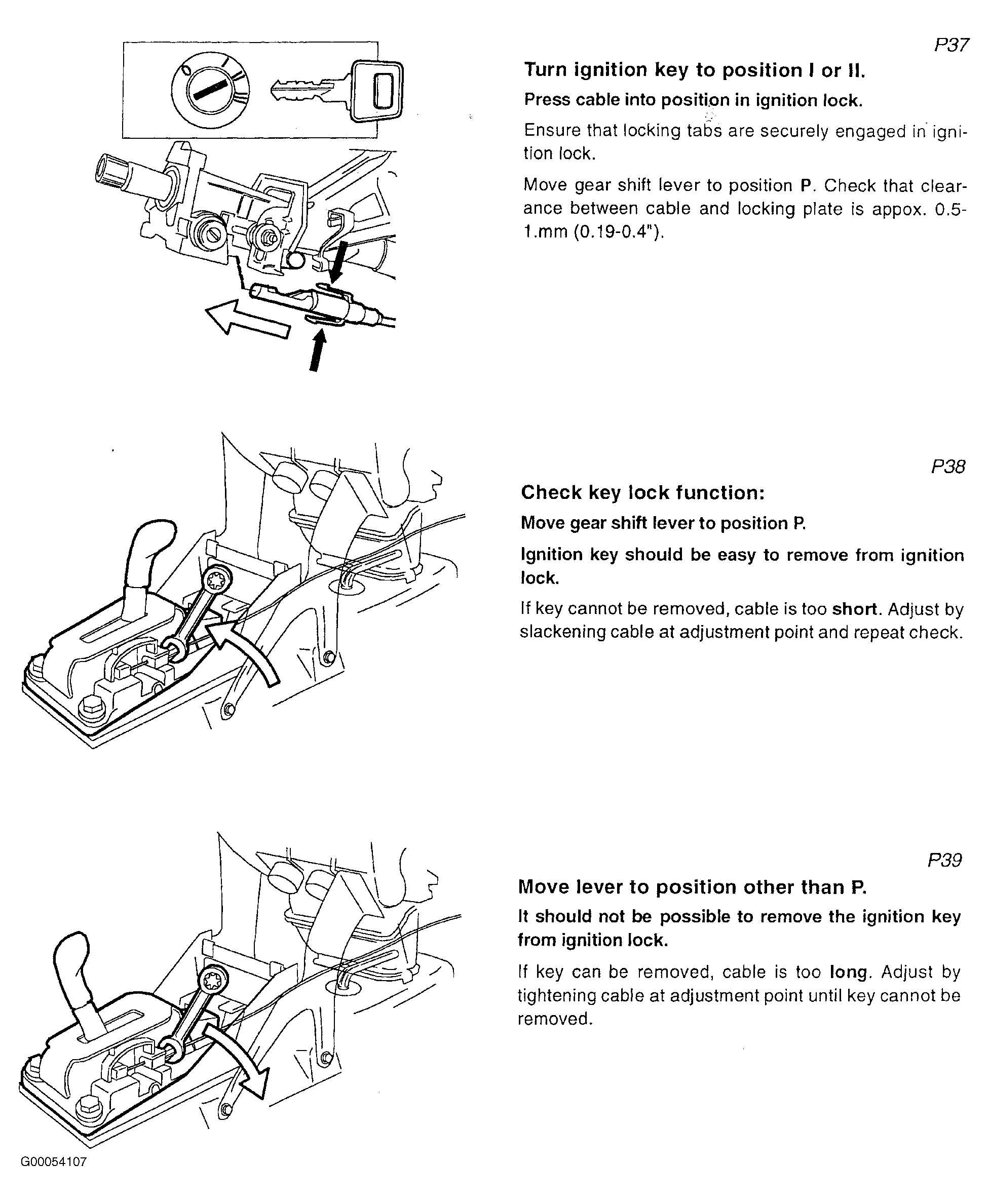

Fig 11: Removal & Installation Of Key Lock Cable - Steps P37-P39 (3 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.

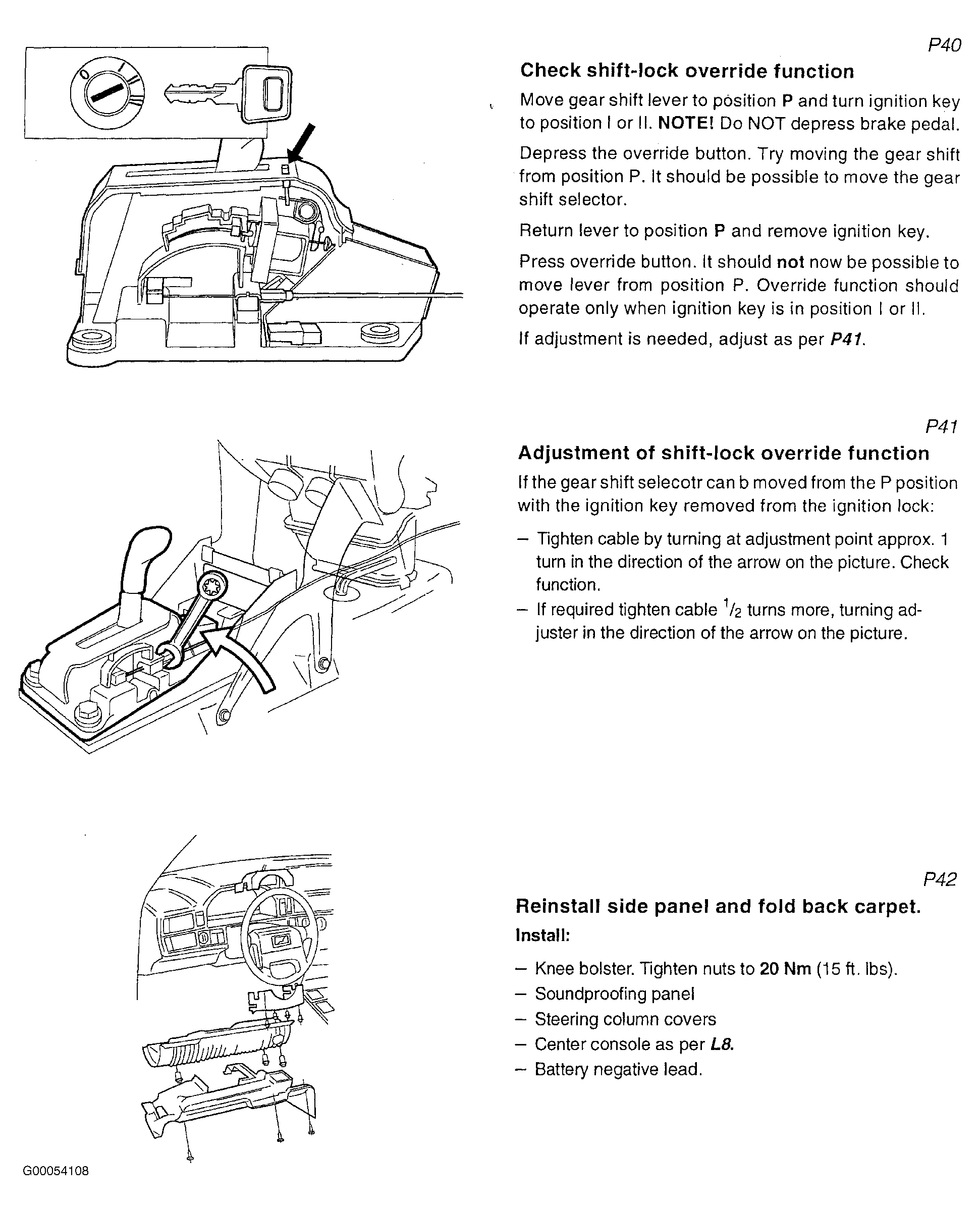

Fig 12: Removal & Installation Of Key Lock Cable - Steps P40-P42 (4 Of 4)

Courtesy of VOLVO CARS OF NORTH AMERICA.
