Connector Identification

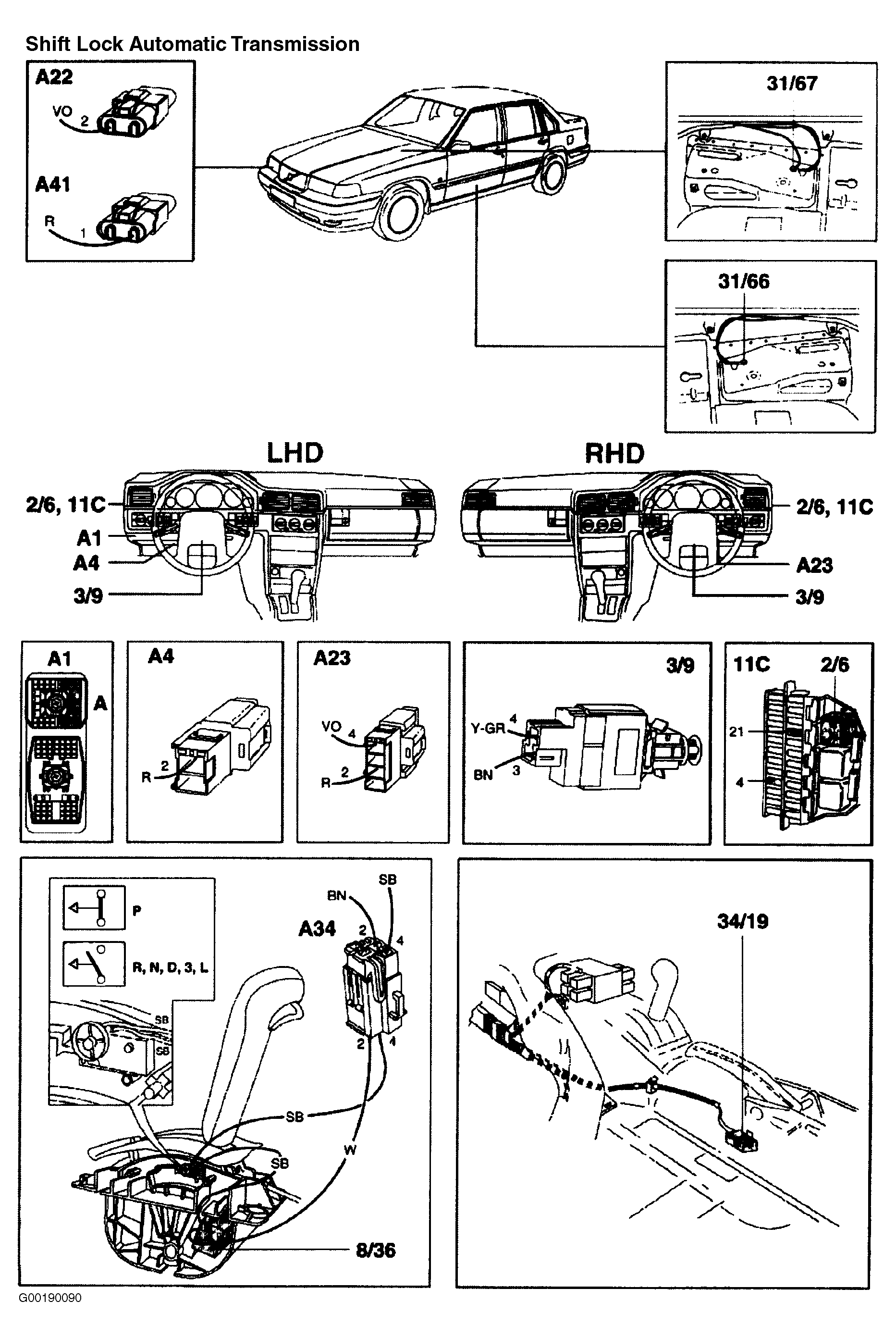

Fig 1: Shift Lock Electrical System Connectors
G00190090Courtesy of VOLVO CARS OF NORTH AMERICA.

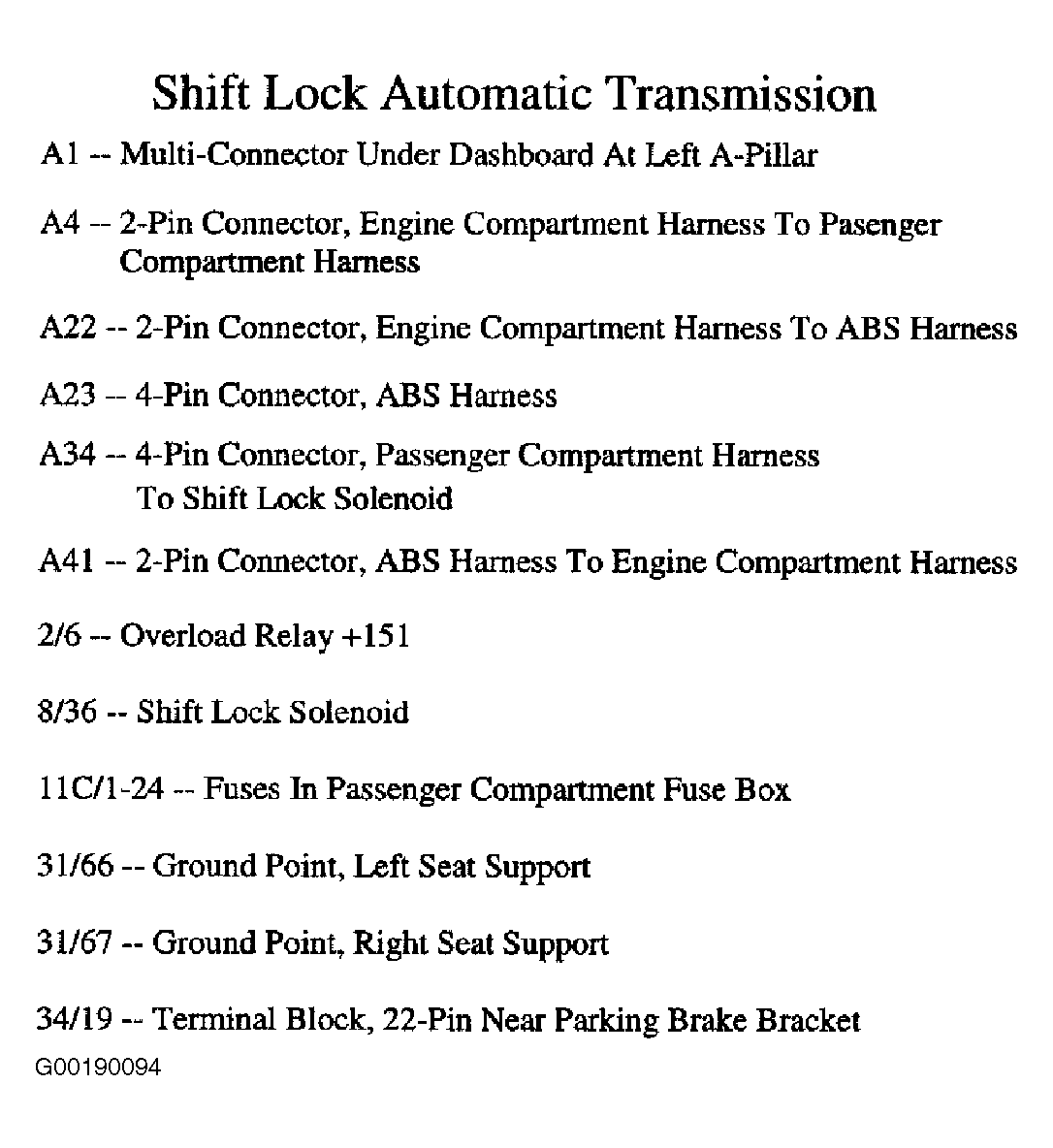

Fig 2: Shift Lock Electrical System Connectors (Legend)
G00190094Courtesy of VOLVO CARS OF NORTH AMERICA.
