Checking for a short-circuit and replacing component

Check cable between control module #23 and fuse 11/29 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

Then replace the fuse.

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

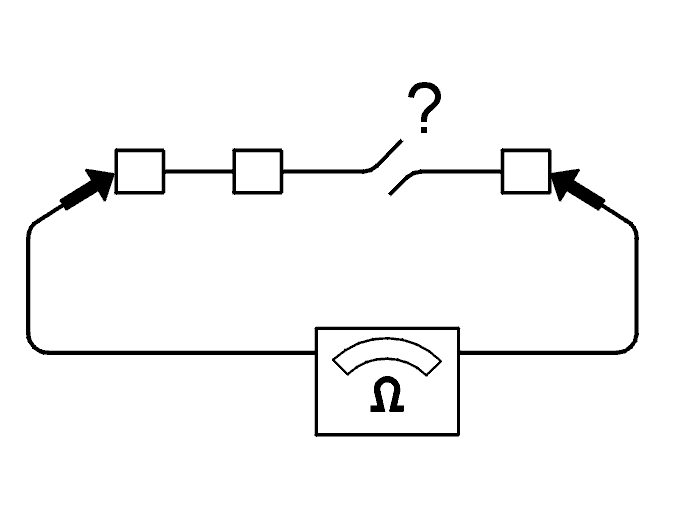

Fig 2: Checking For Open-Circuit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select "Continue" when the fault has been repaired.

• Continue

  Refer to Verification

Check cable between control module #9 and fuse 11/14 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

(For the 850 diesel, check cable between control module #9 and fuse 11A/4 and #25 and fuse 11A/4 for a short-circuit to ground according to Short-circuit to ground, permanent faults .

Then replace the fuse.

Fig 1: Identifying Ohmmeter

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Checking For Short-Circuit

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select "Continue" when the fault has been repaired.

• Continue

  Refer to Verification
